Condenser Fan Motor, 1 1/2 hp MPN:5K48TN6119S
Condenser Fan Motor, 1 1/2 hp

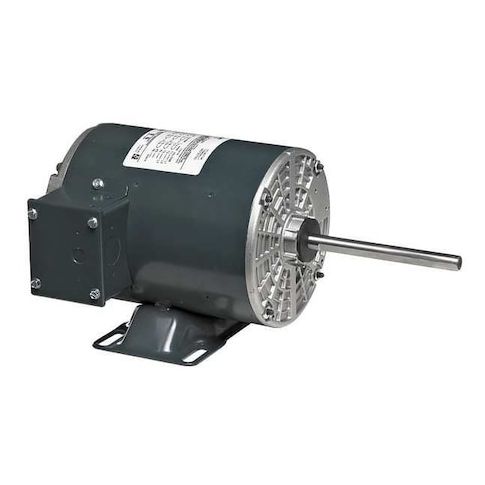

This 1 1/2 hp condenser fan motor from Leeson is designed for three-phase applications, providing reliable and efficient operation in a variety of settings. With a nameplate RPM of 1,140 and a voltage range of 208-230/460V AC, this motor is suitable for use in condensers, chillers, and other HVAC equipment. Its continuous duty cycle and high thermal protection make it an ideal choice for demanding applications. The motor's open drip-proof enclosure design and compact size make it easy to integrate into new or existing systems, making it a versatile and reliable solution for a range of industries and applications.
Top product features:
- Three-Phase design for efficient operation
- Continuous duty cycle for reliable performance
- Open Drip Proof enclosure for reduced maintenance
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Commercial Refrigeration Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.1-5.0/2.5 A Full Load Amps, 56HZ Frame, Output Watts 1100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 65 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.19
- Package Width: 10.94
- Package Height: 9.50
- Package Weight: 38.00
Product info last updated on January 31, 2026 8:49am UTC
Category: Motors
