GeneralPurposeMotor, 3/4hp, 3450RPM, 56 MPN:110108.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G002015047
GeneralPurposeMotor, 3/4hp, 3450RPM, 56

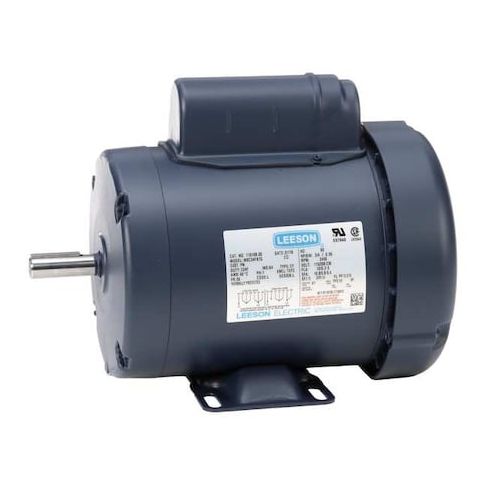

The Leeson General Purpose Motor is a reliable and efficient solution for a wide range of applications. With its 3/4 horsepower and 3450 RPM, this motor is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and commercial buildings. Its capacitor-start design and single-phase operation make it easy to install and maintain. The motor's totally enclosed fan-cooled design ensures optimal performance and longevity, even in high-temperature environments. Suitable for continuous duty cycles, this motor is perfect for applications such as conveyor systems, pumps, and fans, providing a cost-effective and dependable solution for businesses and industries.
Top product features:
- Three-phase operation is not available, but the motor is usable at 115V and 230V AC.
- The motor has a capacitor-start design for efficient operation.
- The motor is totally enclosed fan cooled for reliable performance in various environments.
Top product applications:
- Industrial machinery repair and maintenance
- Manufacturing and production lines
- Food processing and packaging
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.0/5.2-5.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 10.90
- Package Height: 11.30
- Package Weight: 28.10
Product info last updated on January 15, 2026 2:07am UTC
Category: Industrial Electrical Controls and Automation
