GeneralPurposeMotor, 1hp, 3450RPM, 56 MPN:110142.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G002014958
GeneralPurposeMotor, 1hp, 3450RPM, 56

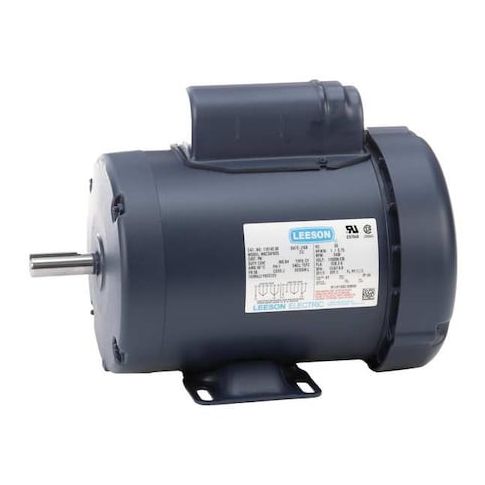

This 1hp General Purpose Motor from Leeson is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, it operates at 3450 RPM and features a capacitor-start design for optimal performance. The totally enclosed fan-cooled motor provides excellent heat dissipation and protection against dust and moisture. Ideal for continuous duty cycles in applications such as pumps, fans, and conveyor systems, this motor offers a service factor of 1.15 and a maximum ambient temperature of 40°C. Its compact design and easy installation make it a great choice for industrial and commercial settings.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Single Phase motor design for compatibility with common household electrical systems
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.0/6.2-6.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 10.90
- Package Height: 11.40
- Package Weight: 30.15
Product info last updated on January 15, 2026 2:07am UTC
Category: Industrial Electrical Controls and Automation
