WashdownMotor, 2hp, 1745RPM, 230/460VAC MPN:122204.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000722978
WashdownMotor, 2hp, 1745RPM, 230/460VAC

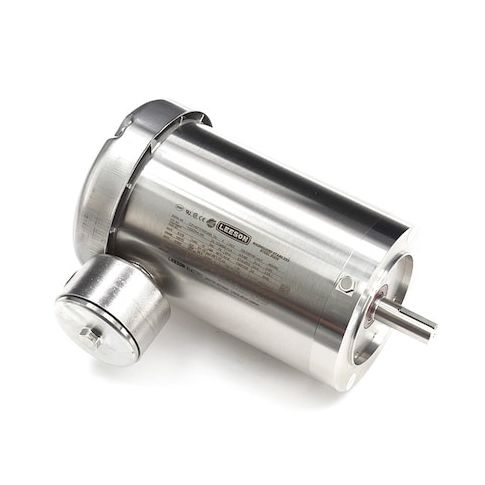

This 2hp Washdown Motor from Leeson is a reliable and efficient solution for various industrial applications. Its three-phase design and 1,745 RPM make it suitable for high-torque operations in harsh environments. The motor's totally enclosed fan-cooled design ensures optimal performance and longevity, even in extreme temperatures. Ideal for use in food processing, chemical handling, and other washdown applications, this motor provides continuous duty cycle and meets NEMA Design B standards. With a removable base and CW/CCW rotation, it offers flexibility and ease of installation. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean environment for operation
- Continuous Duty Cycle allows for uninterrupted operation
- Motor Thermal Protection with T-Stat ensures reliable and safe motor operation
Top product applications:
- Food Processing
- Pump and conveyor systems in food processing plants
- Cleaning and sanitizing equipment in food processing facilities
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.94
- Package Width: 13.06
- Package Height: 12.88
- Package Weight: 53.00
Product info last updated on January 12, 2026 10:43pm UTC
Category: Motors
