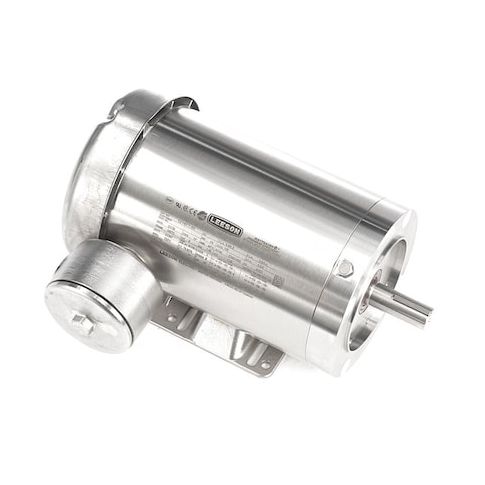

WashdownMotor, 2hp, 1745RPM, 230/460VAC MPN:121877.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G000722954
WashdownMotor, 2hp, 1745RPM, 230/460VAC
This 2hp Washdown Motor from Leeson is designed for heavy-duty use in harsh environments. With a 1745RPM rating and 230/460VAC power, it provides efficient operation and reliable performance. Suitable for applications such as food processing, chemical handling, and pharmaceutical manufacturing, this motor withstands high temperatures and corrosive substances. Its totally enclosed fan-cooled design ensures long motor life and minimizes maintenance. With a continuous duty cycle and NEMA Design B rating, it meets the demands of 24/7 operations. Its compact size and rugged construction make it an ideal choice for washdown and high-humidity areas.
Top product features:
- Totally Enclosed Fan Cooled design
- Removable Base is not available
- Motor Service Factor of 1.3 provides increased power density
Top product applications:
- Water Treatment Plants
- Chemical Processing Plants
- Food Processing Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.3, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.80
- Package Width: 14.10
- Package Height: 14.30
- Package Weight: 50.70
Product info last updated on January 12, 2026 10:43pm UTC
Category: Motors
