Leeson Motors - 3/4HP 115/208-230V 1725RPM TEFC Rigid Mount 110087.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7631B21

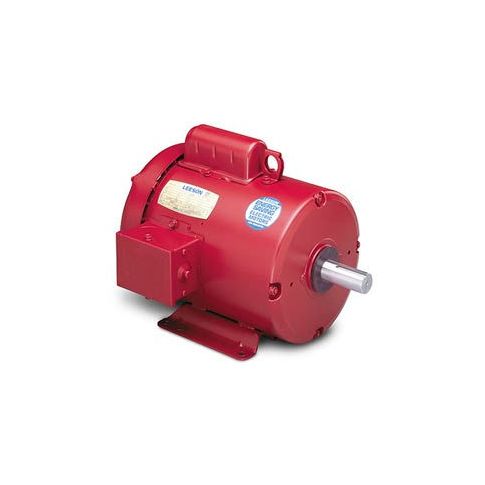

Leeson Motors - 3/4HP 115/208-230V 1725RPM TEFC Rigid Mount
This heavy-duty, single-phase motor is designed for severe farm duty applications, providing high torque and continuous duty operation. Its totally-enclosed fan-cooled design and double sealed ball bearings ensure protection in harsh environments, while the prelubricated bearings with Exxon Polyrex grease provide extra bearing protection. Ideal for use in agricultural settings, this motor features a low temperature manual overload protector and capacitor start for high starting torque with normal starting current. Its compact size and rigid mount make it easy to install in tight spaces, making it a reliable choice for demanding applications such as irrigation pumps, grain dryers, and other farm equipment.
Top product features:
- Totally-enclosed fan-cooled design provides protection from environmental elements.
- Double sealed ball bearings with prelubricated Exxon Polyrex em grease ensure smooth operation and extend bearing life.
- Capacitor start design provides high starting torque with normal starting current.
Top product applications:
- Pumping water for irrigation systems
- Powering grain dryers on farms
- Operating heavy-duty pumps for agricultural applications
Agricultural motor 3/4hp 1725rpm 56 frame totally-enclosed fan-cooled (tefc) 115/208-230v 1ph continuous duty manual thermal protection 1.15 service factor rigid mount. Pheavy duty single phase hi-torque motor is designed specifically for severe farm duty applications. Mechanical features gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with exxon polyrex® em grease having operating temperature range of -20°f to +350°f and special formulation to provide extra bearing protection. Rubber boot over manual protector reset button provides weather protection. Electrical features low temperature manual overload protector protects against extreme overload. Class f copper windings and varnish. Capacitor start provides high starting torque with normal starting current. ./p
Additional Information
- UPC: 691720007792
- UNSPSC: 26101114
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.50
- Package Width: 10.50
- Package Height: 11.50
- Package Weight: 30.00
Product info last updated on February 3, 2026 10:47pm UTC
Category: Definite Purpose Electric Motors
