Leeson Motors - 1/2HP 115/208-230V 1725RPM TEFC Rigid Mount 1.15 S.F. 110086.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7581B21

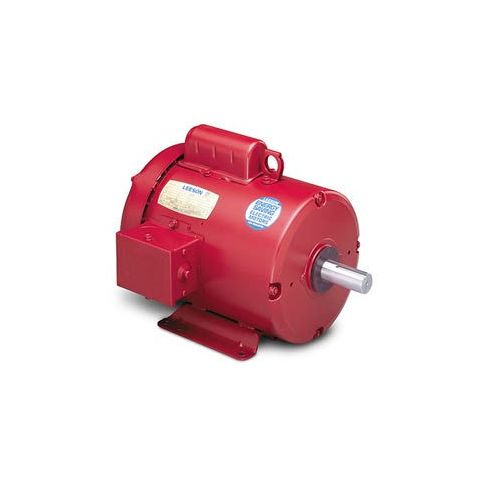

Leeson Motors - 1/2HP 115/208-230V 1725RPM TEFC Rigid Mount 1.15 S.F.
This rugged 1/2HP agricultural motor is designed to withstand the harsh conditions of farm duty applications. Built with heavy-duty single-phase construction, it provides high torque and continuous duty operation. The totally-enclosed fan-cooled (TEFC) design and double sealed ball bearings ensure reliable performance in extreme temperatures. With a service factor of 1.15, this motor can handle demanding tasks with ease. Ideal for use in irrigation systems, grain handling equipment, and other farm machinery, this motor is a reliable choice for farmers and agricultural professionals who require a high-performance motor that can withstand the rigors of farm duty.
Top product features:
- Totally-enclosed fan-cooled design provides protection in all environments.
- Double sealed ball bearings with prelubricated Exxon Polyrex em grease offer extra bearing protection and a wide operating temperature range.
- Capacitor start design provides high starting torque with normal starting current.
Top product applications:
- Pumps for irrigation systems
- Well pumps
- Grain augers
Agricultural motor 1/2hp 1725rpm 56 frame totally-enclosed fan-cooled (tefc) 115/208-230v 1ph continuous duty manual thermal protection 1.15 service factor rigid mount. Pheavy duty single phase hi-torque motor is designed specifically for severe farm duty applications. Mechanical features gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with exxon polyrex® em grease having operating temperature range of -20°f to +350°f and special formulation to provide extra bearing protection. Rubber boot over manual protector reset button provides weather protection. Electrical features low temperature manual overload protector protects against extreme overload. Class f copper windings and varnish. Capacitor start provides high starting torque with normal starting current. /p
Additional Information
- UPC: 691720007785
- UNSPSC: 26101114
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.50
- Package Width: 11.00
- Package Height: 11.25
- Package Weight: 25.00
Product info last updated on February 11, 2026 1:03pm UTC
Category: Definite Purpose Electric Motors
