Leeson Motors - 1/4HP 115/230V 1625RPM TENV Rigid Mount 1.0 S.F. 100699.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7518B21

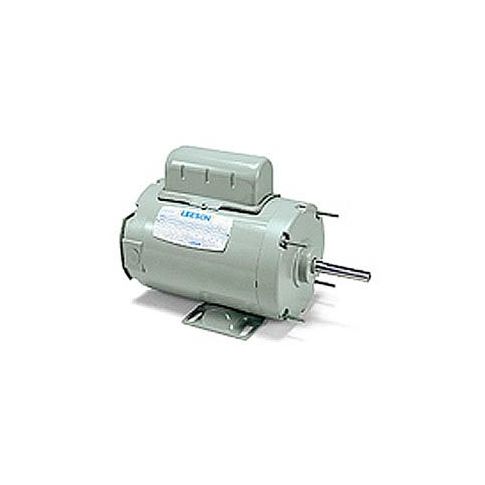

Leeson Motors - 1/4HP 115/230V 1625RPM TENV Rigid Mount 1.0 S.F.
This 1/4HP agricultural motor from Leeson Electric is designed for dependable energy-saving performance in applications where the fan is mounted on the shaft of the motor. Its permanent split capacitor design provides higher reliability and energy efficiency, making it ideal for pfan and blower duty applications. With automatic thermal protection and a totally enclosed dust-tight design, this motor is perfect for tough applications where corrosion resistance is crucial. Suitable for use in agricultural settings, it can be operated at listed speed or two-speed operation can be achieved with the proper auxiliary switch.
Top product features:
- Totally enclosed non-ventilated (TENV) design provides a dust-tight environment.
- Automatic thermal protection prevents motor damage from overheating.
- Permanent split capacitor design eliminates the need for a centrifugal switch, resulting in higher reliability.
Top product applications:
- Fan mounted on the shaft of the motor
- Belt driven fan applications are not suitable, but the motor can be used in other applications such as a blower
- Agricultural equipment
Agricultural motor 1/4hp 1625rpm 48 frame totally-enclosed non-ventilated (tenv) 115/230v 1ph airover duty automatic thermal protection 1.0 service factor rigid mount. Pfan and blower duty motor is designed for dependable energy saving performance in applications where the fan is mounted on the shaft of the motor. The permanent split capacitor design does not require a centrifugal switch resulting in higher reliability than on other types of single phase motors. This design is also more energy efficient and less expensive to operate. These motors may be operated at listed speed or two speed operation may be achieved by using the proper auxiliary switch. Overload protected with an automatic reset protector. Grounding provisions. Totally enclosed dust tight design. Lubricated with quiet running high temperature lubricant. Corrosion resistant finish for tough applications. Because of the inherently low starting torques of this design these motors are not suitable for belt driven fan applications. They must be mounted within the air stream of the driven fan./p
Additional Information
- UPC: 691720004999
- UNSPSC: 26101114
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: PA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.00
- Package Width: 9.00
- Package Height: 8.00
- Package Weight: 22.00
Product info last updated on March 25, 2026 10:54am UTC
Category: Definite Purpose Electric Motors
