Leeson Motors - 5HP 208-230V 1740RPM DP Rigid C Mount 1.15 S.F. 131630.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7482B21

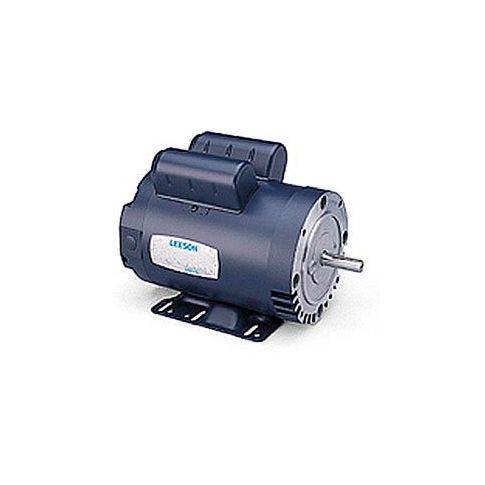

Leeson Motors - 5HP 208-230V 1740RPM DP Rigid C Mount 1.15 S.F.
This 5HP pressure washer motor from Leeson is designed for hot or cold pressure washer applications and other single-phase installations requiring low amperage. Its capacitor start capacitor run construction and double shield ball bearings reduce energy consumption and extend motor life. The motor features a rigid C-mount, manual thermal protection, and a service factor of 1.15 for high overload capacity. Suitable for a variety of applications, including cleaning, maintenance, and industrial processes, this motor provides efficient and reliable performance in temperatures ranging from -20°F to 350°F. Ideal for use in harsh environments and demanding conditions.
Top product features:
- Drip-proof design for use in harsh environments
- Capacitor start capacitor run construction for reduced amperage
- Double shield ball bearings with Exxon Polyrex em lubricant for extra long life and moisture resistance
Top product applications:
- Pressure washers
- Hot or cold pressure washer applications
- Single phase installations requiring minimum starting and running amperages
Pressure washer motor 5hp 1740rpm 184 frame drip-proof (dp) /208-230v 1ph continuous duty manual thermal protection 1.15 service factor rigid c mount. Pmotors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with exxon polyrex® em lubricant having operating temperature range of -20°f to +350°f and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor./p
Additional Information
- UPC: 691720018460
- UNSPSC: 26101111
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: MX
- FOB Origin: MI
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 18.25
- Package Width: 13.50
- Package Height: 13.50
- Package Weight: 80.00
Product info last updated on February 7, 2026 4:23pm UTC
Category: Definite Purpose Electric Motors
