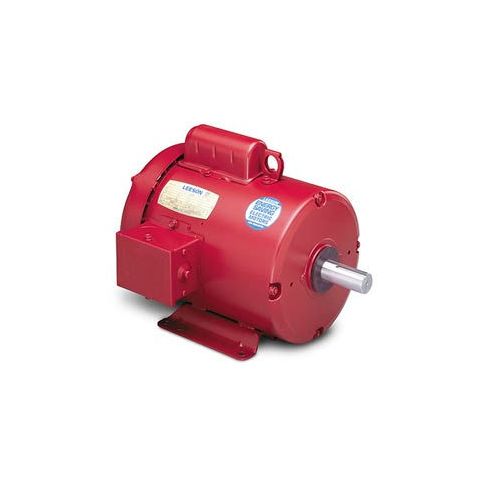

Leeson Motors - 1.5HP 115/208-230V 1725RPM TEFC Rigid Mount 1.15 S.F. 113938.00

Agricultural motor 1.5hp 1725rpm 56h frame totally-enclosed fan-cooled (tefc) 115/208-230v 1ph continuous duty manual thermal protection 1.15 service factor rigid mount. Pheavy duty single phase hi-torque motor is designed specifically for severe farm duty applications. Mechanical features gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with exxon polyrex® em grease having operating temperature range of -20°f to +350°f and special formulation to provide extra bearing protection. Rubber boot over manual protector reset button provides weather protection. Electrical features low temperature manual overload protector protects against extreme overload. Class f copper windings and varnish. Capacitor start provides high starting torque with normal starting current. /p
