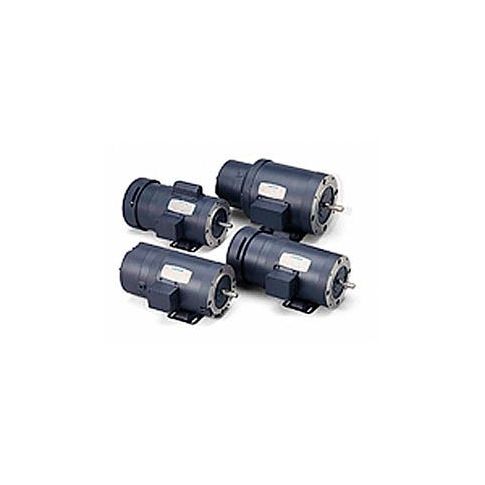

Leeson Motors - 3/4HP 115/208-230V 1725RPM TEFC Rigid C Mount 1.15 S.F. 114167.00

Brake motor 3/4hp 1725rpm 56 frame totally-enclosed fan-cooled (tefc) 115/208-230v 1ph continuous duty no thermal protection 1.15 service factor rigid c mount. Pfail-safe positive stop and hold brake motor. Brakes are spring set. Load is stopped automatically when power is turned off. Brake motors feature a power off manual release for convenience and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off or to be actuated independent of power to the motor. Single phase brake coils are 115/230 vac 60 hz./p
