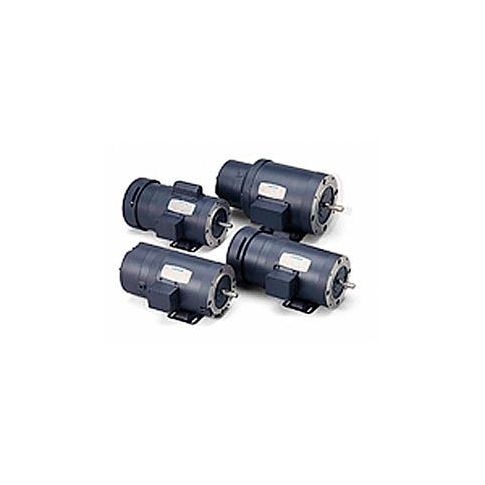

Leeson Motors - 1/2HP 115/208-230V 1725RPM TEFC Rigid C Mount 1.0 S.F.
This 1/2HP brake motor from Leeson Electric is a reliable and efficient solution for applications that require a safe and controlled shutdown. Featuring a totally-enclosed fan-cooled design and a rigid C-mount, this motor is perfect for use in conveyor systems, hoists, and other machinery that requires a secure braking system. With a power-off manual release and spring-set brakes, this motor ensures a safe and automatic stop, even in the event of a power failure. Its compact design and easy installation make it ideal for a variety of industrial applications, including manufacturing, material handling, and more.
Top product features:
- Totally-enclosed fan-cooled (TEFC) design for improved cooling and protection
- Spring-set brakes for automatic load stopping when power is turned off
- Power off manual release for convenience and use in case of a power failure
Top product applications:
- Conveyor systems
- Material handling equipment
- Packaging machinery
Brake motor 1/2hp 1725rpm 56 frame totally-enclosed fan-cooled (tefc) 115/208-230v 1ph continuous duty no thermal protection 1.0 service factor rigid c mount. Pfail-safe positive stop and hold brake motor. Brakes are spring set. Load is stopped automatically when power is turned off. Brake motors feature a power off manual release for convenience and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off or to be actuated independent of power to the motor. Single phase brake coils are 115/230 vac 60 hz./p
Additional Information
- UPC: 691720010389
- UNSPSC: 26101102
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 32.00
Product info last updated on March 4, 2026 11:14am UTC
Category: Definite Purpose Electric Motors
