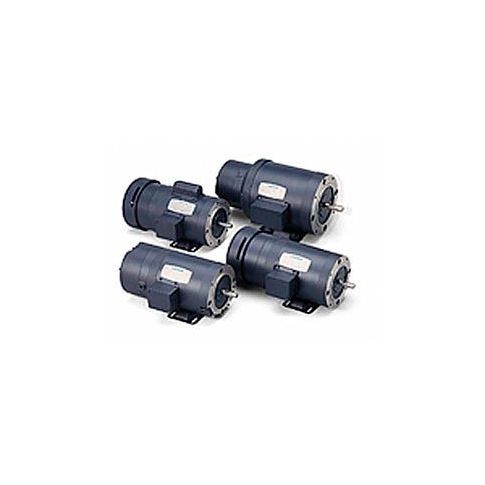

Leeson Motors - 1HP 115/208-230V 1725RPM TEFC Rigid C Mount 1.0 S.F. 111951.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-6654B21
Leeson Motors - 1HP 115/208-230V 1725RPM TEFC Rigid C Mount 1.0 S.F.
This Leeson Motors brake motor is designed for reliable and safe operation in various applications. Featuring a totally-enclosed fan-cooled (TEFC) design and spring-set brakes, it provides automatic load stopping when power is turned off. The motor's power-off manual release allows for easy operation and reset. Suitable for use in conveyor systems, material handling equipment, and other applications where load control is essential. Its compact size and rugged construction make it ideal for industrial settings. With a single-phase design and 1.0 service factor, this motor delivers efficient and reliable performance in a wide range of applications.
Top product features:
- Totally-enclosed fan-cooled design for reduced maintenance and increased durability.
- Spring-set brakes for automatic load stopping when power is turned off.
- Power off manual release for convenience and emergency use.
Top product applications:
- Conveyor systems for heavy-duty applications
- Industrial machinery such as presses and shears
- Material handling equipment like cranes and hoists
Brake motor 1hp 1725rpm 56 frame totally-enclosed fan-cooled (tefc) 115/208-230v 1ph continuous duty no thermal protection 1.0 service factor rigid c mount. Pfail-safe positive stop and hold brake motor. Brakes are spring set. Load is stopped automatically when power is turned off. Brake motors feature a power off manual release for convenience and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off or to be actuated independent of power to the motor. Single phase brake coils are 115/230 vac 60 hz./p
Additional Information
- UPC: 691720010396
- UNSPSC: 26101102
- Brand: Leeson Electric
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 19.63
- Package Width: 11.25
- Package Height: 10.63
- Package Weight: 40.00
Product info last updated on February 13, 2026 7:33am UTC
Category: Definite Purpose Electric Motors
