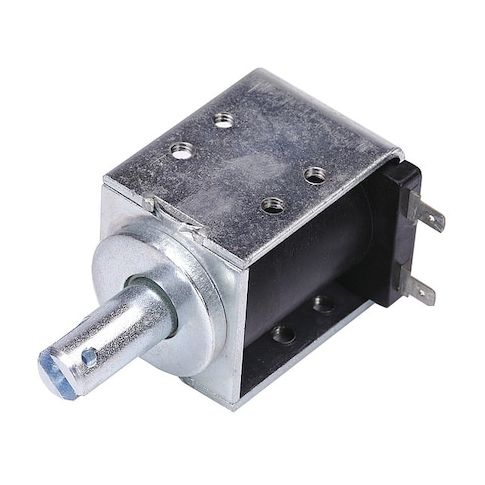

Solenoid, Intermittent, 2.119 A, 76 oz MPN:B4HD-502-M-36
Solenoid, Intermittent, 2.119 A, 76 oz
This Ledex solenoid is a reliable and efficient solution for a variety of applications, including industrial automation, robotics, and medical devices. With a 2.119 A rating and 76 oz pull force, it provides a strong and consistent operation. Its intermittent duty cycle and 180-second max on time make it suitable for applications with varying workloads. The solenoid's compact size and 240 V AC coil voltage allow for easy integration into existing systems. Its steel construction and RoHS compliance ensure durability and environmental responsibility. Ideal for use in applications such as conveyor systems, pneumatic cylinders, and hydraulic systems.
Top product features:
- Pulls with a force range of 48.0 to 288.0 oz
- Provides a stroke range of 0 to 1 in
- Operates with a coil voltage of 240 V AC
Top product applications:
- Automotive applications, such as power door locks and trunk releases
- Industrial control systems, including valve actuation and pneumatic cylinder control
- Medical device applications, such as automated syringe dispensers and surgical instrument actuators
- Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 48.0 to 288.0 oz, Width 1 9/20 in, Depth 1 63/100 in, Length 2 9/50 in, Coil Volts 240 V AC, Seated Amps 0.58 A, Coil Resistance 78 ohms, Coil Insulation 105C max
- Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 2.119 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 8x #8-32 UNC, 2 3/25 in From Mounting Holes to Plunger Hole, Standards RoHS
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.40
- Package Height: 3.50
- Package Weight: 0.80
Product info last updated on March 12, 2026 3:13am UTC
Category: Industrial Electrical Controls and Automation
