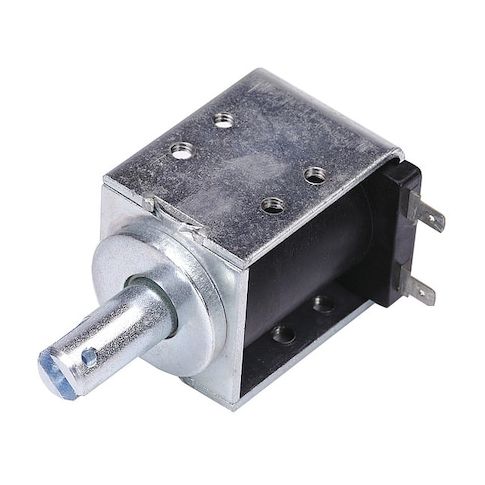

Solenoid, Intermittent, 180 sec, 1.146 A MPN:B4HD-501-M-36
Solenoid, Intermittent, 180 sec, 1.146 A
This high-performance solenoid is designed for demanding applications that require a strong and reliable pull force. With a stroke range of 0 to 1 inch and a pull force range of 48 to 288 ounces, it's ideal for use in industrial automation, medical devices, and other applications where precise control is crucial. The solenoid's intermittent duty cycle and 180-second maximum on-time make it suitable for high-frequency operation, while its steel construction and 105°C insulation ensure durability and reliability in a wide range of environments. Its compact size and standard mounting holes make it easy to integrate into existing systems.
Top product features:
- Pulls a box frame with a stroke range of 0 to 1 inch
- Provides a pull force range of 48.0 to 288.0 ounces
- Operates with a duty cycle that allows for intermittent use with a maximum on time of 180 seconds
Top product applications:
- Automotive applications, such as power window lifts and trunk releases
- Medical devices, like ventilator valves and infusion pumps
- Industrial machinery, including textile machinery and conveyor systems
- Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 48.0 to 288.0 oz, Width 1 9/20 in, Depth 1 63/100 in, Length 2 9/50 in, Coil Volts 120 V AC, Seated Amps 1.146 A, Coil Resistance 19.3 ohms, Coil Insulation 105C max
- Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 4.214 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 8x #8-32 UNC, 2 3/25 in From Mounting Holes to Plunger Hole, Standards RoHS
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.40
- Package Height: 3.30
- Package Weight: 0.80
Product info last updated on February 25, 2026 11:32pm UTC
Category: Industrial Electrical Controls and Automation
