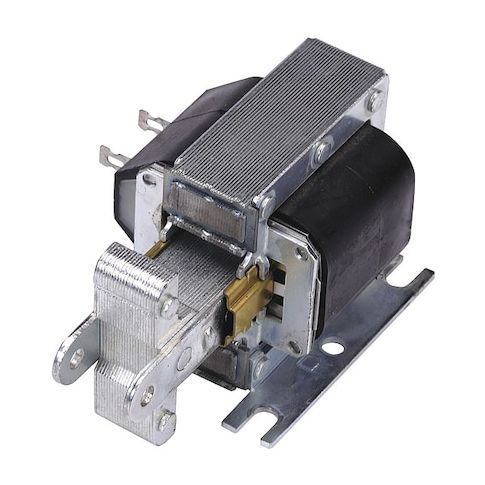

Solenoid, Intermittent, Solder Lug Coil, 1.4 A MPN:1751-A-1
Solenoid, Intermittent, Solder Lug Coil, 1.4 A
This Ledex solenoid is designed for applications requiring a reliable, intermittent stroke, such as in machinery control, automation, and industrial equipment. Its 0.75 inch stroke range and 16-128 oz pull force make it suitable for a variety of tasks. The solenoid's 240V AC coil and 1.4A rated current enable efficient operation, while its Class 105 insulation and 161 ohm coil resistance ensure reliable performance. Ideal for use in US-based industries, this solenoid is a cost-effective solution for applications where a strong, controlled pull is required, such as in material handling, packaging, and manufacturing.
Top product features:
- Solenoid has a stroke range of 0 to 0.75 in, allowing for precise control over movement.
- Solenoid has a pull force range of 16.0 to 128.0 oz, providing a strong and reliable operation.
- Solenoid can operate at a maximum current of 1.4 A, making it suitable for a variety of applications.
Top product applications:
- Automotive Door Lock Actuator
- Industrial Control Valve
- Medical Equipment Actuator
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 0.75 in, Pull Force Range 16.0 to 128.0 oz, Width 1 609/1000 in, Depth 1 427/1000 in, Length 1 219/500 in, Coil Volts 240 V AC, Seated Amps 0.26 A, Seated Watts 19.5 W, Coil Resistance 161 ohms, Coil Insulation Class 105
- Class A, Terminals Solder Lug Coil, Amps @ Max. Stroke 1.4 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 4x �.156 thru, 107/200 in From Mounting Holes to Plunger Hole
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.20
- Package Height: 1.70
- Package Weight: 0.55
Product info last updated on February 17, 2026 3:34pm UTC
Category: Industrial Electrical Controls and Automation
