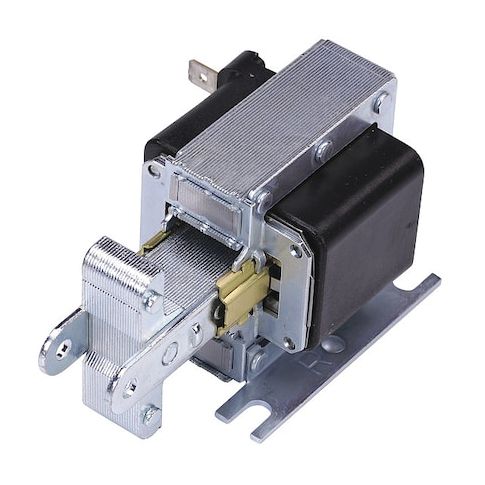

Solenoid, Continuous, 180 sec, 256 oz MPN:2537-F-34
Solenoid, Continuous, 180 sec, 256 oz
The Ledex Solenoid is a high-performance, continuous-duty solenoid designed for a wide range of applications. With a pull force range of 96-256 oz and a stroke range of 0-1 in, this solenoid is ideal for use in hydraulic systems, pneumatic systems, and other applications where reliable and precise control is required. Its continuous-duty operation and 180-second maximum on-time make it suitable for demanding applications. The solenoid's compact size and durable construction also make it a great choice for use in tight spaces. Its use in applications such as automotive, aerospace, and industrial automation can provide benefits including increased efficiency, reliability, and precision.
Top product features:
- AC Laminate Pull Type solenoid
- Pull Force Range 96.0 to 256.0 oz
- Stroke Range 0 to 1 in
Top product applications:
- Automotive applications such as fuel injectors and throttle actuators
- Medical devices such as ventilators and respirators
- Industrial machinery such as pumps and valves
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 1 in, Pull Force Range 96.0 to 256.0 oz, Width 2 1/2 in, Depth 2 31/500 in, Length 2 3/50 in, Coil Volts 240V AC, Seated Amps 0.24 A, Seated Watts 18 W, Coil Resistance 60 ohms, Coil Insulation Class 155
- Class F, Terminals 1/4 in QC, Amps @ Max. Stroke 3.2 A, Duty Cycle Continuous, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes (4) slots, �.208 x .250, 433/1000 in From Mounting Holes to Plunger Hole, Standards RoHS, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.50
- Package Height: 3.40
- Package Weight: 1.40
Product info last updated on March 22, 2026 6:02pm UTC
Category: Industrial Electrical Controls and Automation
