Solenoid, Intermittent, AC Laminate Pull Type, 64 oz MPN:1750-A-1

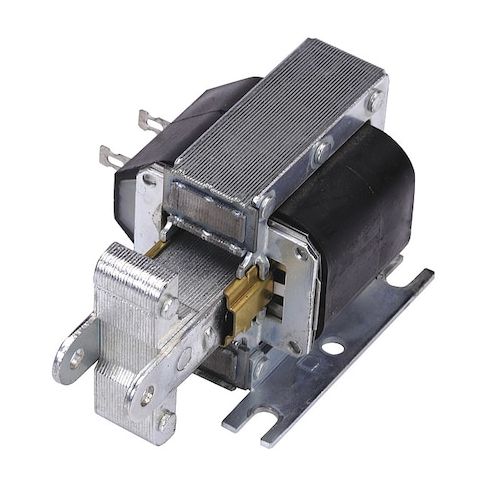

Solenoid, Intermittent, AC Laminate Pull Type, 64 oz
This AC laminate pull type solenoid from Ledex is designed for intermittent use, providing a reliable and efficient solution for a wide range of applications. With a stroke range of 0 to 0.75 inches and a pull force range of 16 to 128 ounces, it is suitable for various industrial and commercial uses, such as automated machinery, robotics, and process control systems. Its compact size and durable construction make it an ideal choice for applications where space is limited. The solenoid's high-quality coil and robust design ensure reliable operation and long lifespan, making it a valuable addition to any system.
Top product features:
- Solenoid has a stroke range of 0 to 0.75 in, allowing for precise movement control.
- Solenoid's pull force range is 16.0 to 128.0 oz, providing adjustable force output.
- Solenoid has a duty cycle of intermittent operation with a maximum on time of 180 seconds, enabling controlled and repeated actuation.
Top product applications:
- Automotive Applications
- Automotive door lock actuators
- Automotive trunk release mechanisms
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 0.75 in, Pull Force Range 16.0 to 128.0 oz, Width 1 609/1000 in, Depth 1 427/1000 in, Length 1 219/500 in, Coil Volts 120 V AC, Seated Amps 0.5 A, Seated Watts 17.7 W, Coil Resistance 40.5 ohms, Coil Insulation Class 105
- Class A, Terminals Solder Lug Coil, Amps @ Max. Stroke 2.6 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 4x �.156 thru, 107/200 in From Mounting Holes to Plunger Hole
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.20
- Package Height: 1.50
- Package Weight: 0.55
Product info last updated on February 27, 2026 8:54am UTC
Category: Industrial Electrical Controls and Automation
