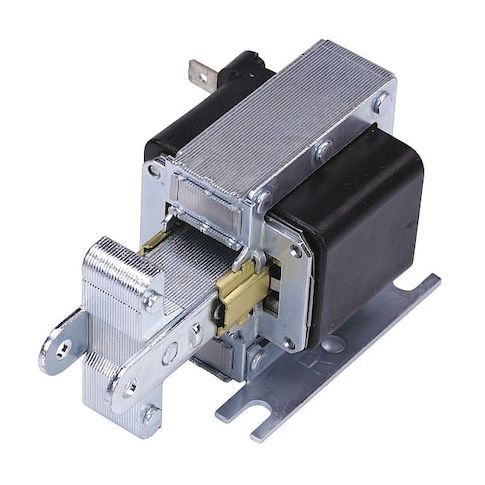

Solenoid, Continuous, 144 oz, Class 155, Class F MPN:2536-F-34
Solenoid, Continuous, 144 oz, Class 155, Class F
The Ledex Solenoid is a reliable and efficient component designed for a variety of applications. With a stroke range of 0 to 1 inch and a pull force range of 96 to 256 oz, this solenoid can be used in a range of industries including aerospace, automotive, and medical devices. Its continuous duty cycle and 120V AC coil voltage make it suitable for high-frequency operation. The solenoid's compact size and lightweight design make it easy to integrate into existing systems. Its use can lead to increased efficiency, reduced maintenance, and improved overall performance in applications such as valves, pumps, and actuators.
Top product features:
- AC Laminate Pull Type
- Stroke Range 0 to 1 in
- Pull Force Range 96.0 to 256.0 oz
Top product applications:
- Automotive applications where a reliable and compact solenoid is required
- Industrial automation systems that need a high-stroke solenoid with precise control
- Medical devices that require a solenoid with high pull force and precise stroke control
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 1 in, Pull Force Range 96.0 to 256.0 oz, Width 2 1/2 in, Depth 2 31/500 in, Length 2 3/50 in, Coil Volts 120V AC, Seated Amps 0.48 A, Seated Watts 19 W, Coil Resistance 14.8 ohms, Coil Insulation Class 155
- Class F, Terminals 1/4 in QC, Amps @ Max. Stroke 6.8 A, Duty Cycle Continuous, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes (4) slots, �.208 x .250, 433/1000 in From Mounting Holes to Plunger Hole, Standards RoHS, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.30
- Package Height: 3.20
- Package Weight: 1.40
