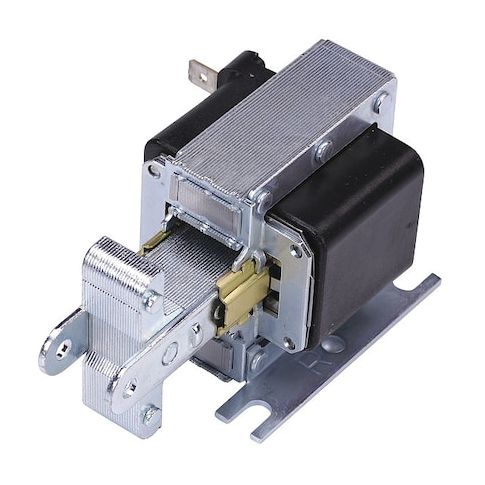

Solenoid, Continuous, AC Laminate Pull Type, 21/100 in MPN:2005-F-34
Solenoid, Continuous, AC Laminate Pull Type, 21/100 in
This AC laminate pull-type solenoid is a reliable and efficient solution for a variety of applications, including automation, robotics, and industrial control systems. Its continuous stroke range of 0-1 inch and pull force range of 64-256 oz make it suitable for a range of tasks, from light to heavy-duty operations. The solenoid's compact design and durable steel construction make it easy to integrate into existing systems, while its continuous duty cycle and 180-second maximum on-time ensure reliable performance. Ideal for use in manufacturing, packaging, and material handling applications, this solenoid provides a reliable and efficient way to automate tasks and improve productivity.
Top product features:
- Pull Type Solenoid with a stroke range of 0 to 1 inch, providing precise control over linear motion
- Capable of delivering a pull force range of 64.0 to 256.0 ounces, allowing for a wide range of applications
- Equipped with a coil that operates at 120 V AC, with a seated current of 0.43 A and a maximum current of 4.9 A at maximum stroke, ensuring efficient and reliable operation
Top product applications:
- Automotive applications, such as door locks and hood releases
- Industrial automation, including machine tool and robotic systems
- Medical equipment, like patient lift systems and hospital bed controls
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 1 in, Pull Force Range 64.0 to 256.0 oz, Width 2 1/2 in, Depth 1 203/250 in, Length 2 3/50 in, Coil Volts 120 V AC, Seated Amps 0.43 A, Seated Watts 17.9 W, Coil Resistance 20.5 ohms, Coil Insulation Class 155
- Class F, Terminals 1/4 in QC, Amps @ Max. Stroke 4.9 A, Duty Cycle Continuous, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes (4) slots, �.208 x .250, 21/100 in From Mounting Holes to Plunger Hole, Standards RoHS, U
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.80
- Package Height: 2.30
- Package Weight: 1.15
Product info last updated on February 18, 2026 1:44pm UTC
Category: Industrial Electrical Controls and Automation
