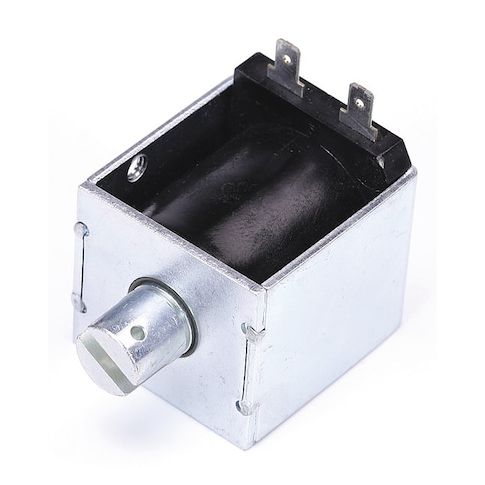

Solenoid, Intermittent, 0.548 A, 32.0 to 192.0 oz MPN:B22-501-M-36
Solenoid, Intermittent, 0.548 A, 32.0 to 192.0 oz
The Ledex Intermittent Solenoid is a versatile and reliable component ideal for a wide range of applications, including industrial automation, medical devices, and laboratory equipment. Its adjustable pull force range of 32.0 to 192.0 oz and stroke range of 0 to 1 in make it suitable for various tasks. The solenoid's high current rating and duty cycle capabilities enable efficient operation in intermittent applications, while its compact size and low weight make it easy to integrate into tight spaces. With a long lifespan and low maintenance requirements, this solenoid is a valuable addition to any system requiring precise control and reliability.
Top product features:
- Pull Type Solenoid with Stroke Range 0 to 1 in
- Pull Force Range of 32.0 to 192.0 oz
- Amps @ Max. Stroke of 2.405 A
Top product applications:
- Automotive applications, such as door locks and trunk releases
- Medical equipment, including ventilators and anesthesia machines
- Industrial machinery, like textile machinery and conveyor systems
- Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 32.0 to 192.0 oz, Width 1 31/100 in, Depth 1 47/100 in, Length 1 61/100 in, Coil Volts 120 V AC, Seated Amps 0.548 A, Coil Resistance 40.5 ohms, Coil Insulation 105C max
- Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 2.405 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 2x #10-32 UNF, 169/200 in From Mounting Holes to Plunger Hole, Standards RoHS
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.20
- Package Height: 1.70
- Package Weight: 0.52
Product info last updated on March 2, 2026 8:19am UTC
Category: Industrial Electrical Controls and Automation
