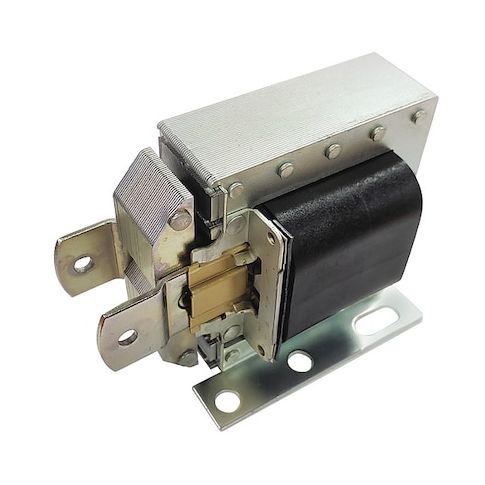

Solenoid, Intermittent, Solder Lugs, 320 oz MPN:3501-M-1
Solenoid, Intermittent, Solder Lugs, 320 oz
This Ledex solenoid is an AC laminate pull type solenoid ideal for use in various applications requiring a reliable and efficient solenoid. With a stroke range of 0 to 1.25 inches and a pull force range of 256.0 to 512.0 oz, this solenoid is suitable for use in industrial equipment, machinery, and automation systems. Its intermittent duty cycle and high ampacity rating make it perfect for applications where high current is required. With a compact design and easy mounting, this solenoid is a versatile and reliable solution for a wide range of industrial and commercial applications.
Top product features:
- Intermittent operation allows for periodic activation and deactivation of the solenoid.
- The solenoid has a pull force range of 256.0 to 512.0 oz.
- The solenoid has a stroke range of 0 to 1.25 in.
Top product applications:
- Actuation of valves in industrial processes
- Automotive applications, such as door locks and trunk releases
- Industrial machinery control, including on/off switches and start/stop functions
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 1.25 in, Pull Force Range 256.0 to 512.0 oz, Width 2 973/1000 in, Depth 2 3/8 in, Length 2 937/1000 in, Coil Volts 240V AC, Seated Amps 0.68 A, Seated Watts 48 W, Coil Resistance 19.3 ohms, Coil Insulation Class 105
- Class A, Terminals Solder Lugs, Amps @ Max. Stroke 8.5 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes (2) slots, �.281 x .375 & (2) �.281 thru
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.40
- Package Height: 3.20
- Package Weight: 2.59
Product info last updated on March 15, 2026 3:21pm UTC
Category: Industrial Electrical Controls and Automation
