Solenoid, Intermittent, 192 oz, 433/1000 in MPN:2786-F-34
Solenoid, Intermittent, 192 oz, 433/1000 in

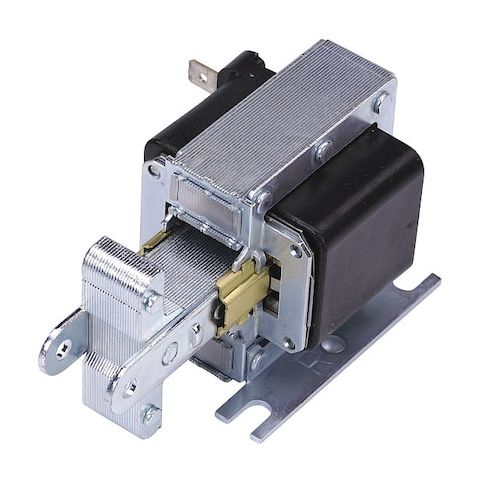

This 192 oz intermittent solenoid from Ledex is designed for a wide range of applications requiring precise control and reliability. With a stroke range of 0 to 1 inch and a pull force of 128 to 512 oz, it is suitable for use in various industries such as automation, manufacturing, and medical devices. Its compact size and high-performance capabilities make it an ideal choice for applications with limited space. The solenoid's ability to handle high currents and withstand heavy-duty use also makes it a reliable option for demanding applications. It is also RoHS compliant and manufactured in the US.
Top product features:
- Pull Type Solenoid with a Stroke Range of 0 to 1 in
- AC Laminate Pull Type Solenoid with a Pull Force Range of 128.0 to 512.0 oz
- Steel Construction with Mounting Holes for Secure Installation
Top product applications:
- Automotive applications such as fuel injectors or solenoid valves
- Industrial control systems for machinery and equipment
- Medical devices that require precise control and solenoid actuation
- Solenoid, AC Laminate Pull Type, Stroke Range 0 to 1 in, Pull Force Range 128.0 to 512.0 oz, Width 2 1/2 in, Depth 2 31/500 in, Length 2 3/50 in, Coil Volts 120V AC, Seated Amps 0.95 A, Seated Watts 36.5 W, Coil Resistance 11.7 ohms, Coil Insulation Class 155
- Class F, Terminals 1/4 in QC, Amps @ Max. Stroke 8.5 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes (4) slots, �.208 x .250, 433/1000 in From Mounting Holes to Plunger Hole, Standards RoHS
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.90
- Package Height: 2.50
- Package Weight: 1.35
