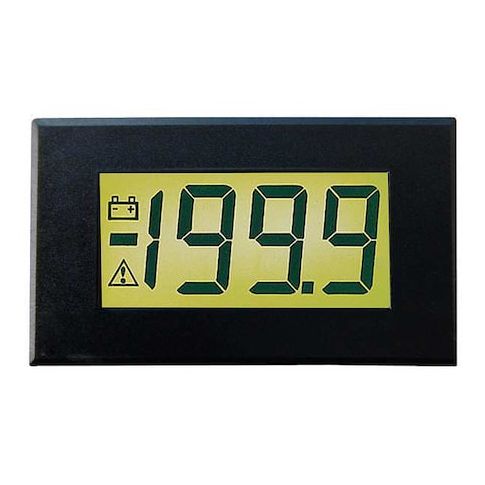

Digital Panel Meter, LCD, 7 to 14VDC MPN:DPM-950
Digital Panel Meter, LCD, 7 to 14VDC
This Digital Panel Meter is a reliable and accurate solution for measuring DC voltage in a variety of applications. With a wide input range of 7 to 14V DC and an accuracy of 0.1% of reading, it is ideal for use in industrial, commercial, and laboratory settings. The meter features a 4-digit LCD display and is designed to fit a 72mm x 40mm DIN cutout, making it easy to integrate into existing systems. Its compact size and low power requirements make it a great choice for space-constrained applications, such as monitoring battery voltage or measuring DC power in solar panels.
Top product features:
- Digital display of DC voltage with a range of 7 to 14V DC
- True RMS measurement capability is not available
- 4-digit LCD display with a span of 1999
Top product applications:
- Industrial control panel monitoring
- Automotive electrical system monitoring
- Aviation electrical system monitoring
Voltmeter, DC Voltage, Input Range 7 to 14V DC, Accuracy 0.1 Percent of Reading +/-1 Count, Display Span 1999, Display Digits 4, LCD Display, True RMS No, No Excitation, Use With Mfr. No. BEZ 900-IP, Fits 72mm x 40mm DIN Cutout, Connector Type Pin Terminal, Process Connection No, Power Required 7 to 14V DC, IDC Interface, BS EN61010 NEMA Rating, Depth 1 in, Mounting Panel Cutout, Style Panel, Includes Mounting and Pin Brackets, Manufacturers Warranty Length 1 yr
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.25
- Package Height: 1.25
- Package Weight: 0.17
Product info last updated on February 11, 2026 6:29am UTC
Category: Process Monitoring
