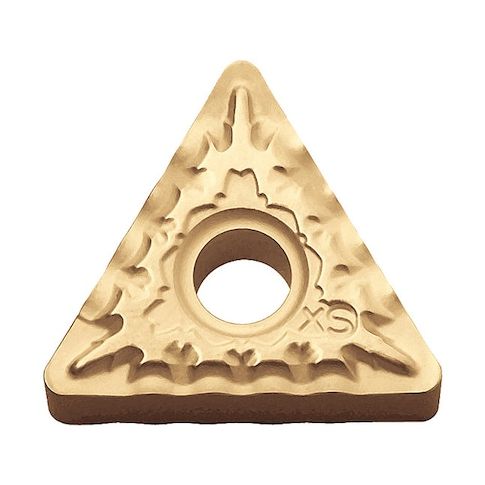

Diamond Turning Insert, Triangle, 3, 2 MPN:TNMG332XSCA025P
Diamond Turning Insert, Triangle, 3, 2
The Kyocera Diamond Turning Insert, Triangle, 3, 2 is a high-performance cutting tool designed for precision turning operations. Its unique chip-breaker code XS and inscribed circle of 3/8 inch allow for efficient material removal and reduced risk of tool breakage. The TiCN+Al2O3+TiN coating provides exceptional wear resistance and thermal stability. Suitable for roughing applications, this insert can be used in various industries such as aerospace, automotive, and medical device manufacturing. With its fast lead time of 2 days and minimum order quantity of 10, this insert is ideal for production environments requiring high productivity and accuracy.
Top product features:
- Inscribed Circle 3/8 in provides precise positioning for machining operations
- TiCN+Al2O3+TiN coating enhances tool durability and wear resistance
- Chip-Breaker Style Roughing promotes efficient chip removal and reduces machining time
Top product applications:
- Diamond Turning Insert, Triangle, 3, 2 from Kyocera is used in Roughing operations due to the Chip-Breaker Style Roughing.
- Diamond Turning Insert, Triangle, 3, 2 from Kyocera is used in applications requiring a Clearance Angle of 0 Degrees.
- Diamond Turning Insert, Triangle, 3, 2 from Kyocera is used in operations utilizing a CVD coating process.
Diamond Turning Insert, Chip-Breaker Code XS, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code TNMG332XS, Chip-Breaker Style Roughing, Clearance Angle 0 Degrees , Coating Process CVD
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.13
- Package Width: 1.77
- Package Height: 0.39
- Package Weight: 0.19
