Safety Relief Valve, 3in.x3in., 15 psi MPN:930-K01-GC0015
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6159054

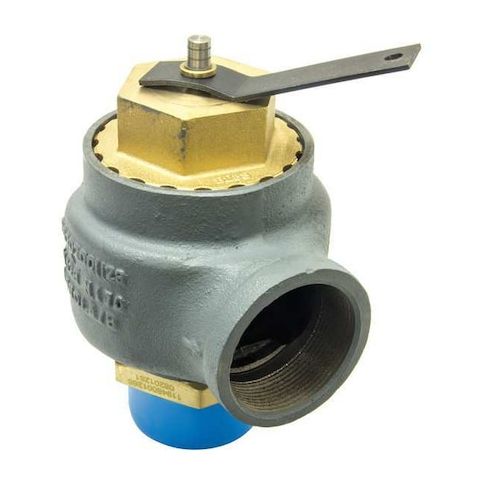

Safety Relief Valve, 3in.x3in., 15 psi
This Kunkle Valve Safety Relief Valve is designed for low-pressure steam heating boilers, ensuring safe operation and reliable performance. With a factory-set pressure of 15 psi and a steam capacity of 6,949 lb/hr, it meets the needs of various applications. Made from durable cast iron and featuring a bronze disc, brass seat, and steel spring, this valve withstands high temperatures and pressures. Its compact design, measuring 8 3/4 in tall and 4 in long, fits easily into most boiler systems. The valve complies with ASME Code HV standards and is suitable for use in industrial and commercial settings.
Top product features:
- Cast Iron body provides durability and resistance to corrosion in low-pressure steam heating boiler applications.
- Test Lever allows for easy and safe testing of the valve's functionality.
- Spring Material Steel ensures reliable and consistent operation within the specified temperature range of 0 to 250 degrees F.
Top product applications:
- Low Pressure Steam Heating Boilers
- Low pressure steam heating systems
- Boilers
Safety Relief Valve, Body Material Cast Iron, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3 in, Outlet Size 3 in, Factory Set Pressure 15 psi, Steam Capacity (Lb./Hr.) 6,949 lb/hr, Disc Material Bronze, Overall Height 8 3/4 in, Application Low Pressure Steam Heating Boilers, Overall Length 4 in, Seat Material Brass, Spring Material Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Included, Compliance Section IV Steam, Standards ASME Code HV
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 10.00
- Package Height: 8.00
- Package Weight: 17.90
Product info last updated on February 5, 2026 3:59pm UTC
Category: Pipes, Valves and Fittings
