Adjustable Relief Valve, 1-1/4 In, 225 psi MPN:0019-F12-MG00225
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3125254

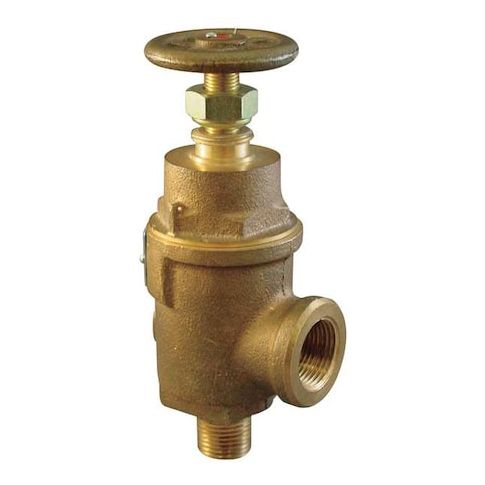

Adjustable Relief Valve, 1-1/4 In, 225 psi
Protect your equipment and systems from overpressure with the Kunkle Valve Adjustable Relief Valve. This rugged, adjustable valve provides overpressure relief and protection for pumps, tanks, lines, and hydraulic systems, ensuring safe operation and minimizing damage from excessive pressure. With a factory-set pressure of 225 psi and adjustable settings, you can customize the valve to meet your specific needs. The valve's bronze body and 316 stainless steel spring ensure durability and resistance to corrosion, while its compact design makes it easy to integrate into existing systems. Ideal for applications where pressure regulation and continuous bypass relief are critical.
Top product features:
- Adjustable relief valve with factory set pressure of 225 psi
- Provides continuous by-pass relief
- Has a temperature range of -60 to 406 degrees F
Top product applications:
- Overpressure relief and protection of pumps
- Pressure regulation and continuous by-pass relief
- Protection of tanks, lines and hydraulic systems
Adjustable Relief Valve, Body Material Bronze, Inlet Type FNPT, Outlet Type MNPT, Inlet Size 1 1/4 in, Outlet Size 1 1/4 in, Factory Set Pressure 225 psi, Disc Material Bronze, Overall Height 8 1/8 in, Application Overpressure relief and protection of pumps, tanks, linesand hydraulic systems, pressure regulationand continuous by-pass relief, Overall Length 4 in, Spring Material 316 Stainless Steel, Temp. Range -60 Degrees to 406 Degrees F, Test Lever Test Lever Not Included
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 50 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.10
- Package Height: 9.60
- Package Weight: 6.40
Product info last updated on February 19, 2026 6:25am UTC
Category: Pipes, Valves and Fittings
