Adjustable Relief Valve, 2 In, 100 psi MPN:0019-H11-MG0100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1296811

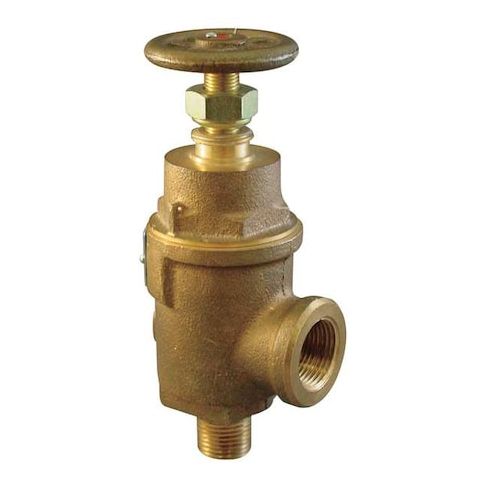

Adjustable Relief Valve, 2 In, 100 psi
Protect your pumps, tanks, lines, and hydraulic systems from overpressure with the Adjustable Relief Valve from Kunkle Valve. This rugged valve features a bronze body and disc, 316 stainless steel spring, and adjustable factory-set pressure of 100 psi. With a temperature range of -60 to 406°F, it's suitable for a wide range of applications. Use it for overpressure relief, pressure regulation, and continuous by-pass relief. Its compact design makes it ideal for installation in tight spaces, and its adjustable settings allow for precise control over system pressure. Ideal for use in industrial settings, construction, and manufacturing.
Top product features:
- Adjustable relief valve allows for customizable pressure settings
- Bronze body and disc materials provide corrosion resistance
- Spring made of 316 Stainless Steel offers high temperature resistance up to 406 Degrees F
Top product applications:
- Overpressure relief
- Protection of pumps
- Pressure regulation and continuous by-pass relief
Adjustable Relief Valve, Body Material Bronze, Inlet Type FNPT, Outlet Type MNPT, Inlet Size 2 in, Outlet Size 2 in, Factory Set Pressure 100 psi, Disc Material Bronze, Overall Height 10 5/8 in, Application Overpressure relief and protection of pumps, tanks, linesand hydraulic systems, pressure regulationand continuous by-pass relief, Overall Length 5 1/4 in, Spring Material 316 Stainless Steel, Temp. Range -60 Degrees to 406 Degrees F, Test Lever Test Lever Not Included
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 4.60
- Package Height: 14.60
- Package Weight: 16.30
Product info last updated on February 16, 2026 1:16pm UTC
Category: Pipes, Valves and Fittings
