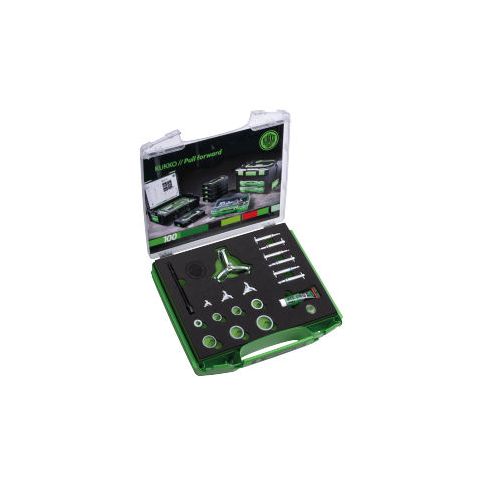

Kukko Int Bearing Set 3/8" To 1-3/16"(10-30mm) Dia Bearings On A Shaft & In A Casing K-70-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-88890B26
Kukko Int Bearing Set 3/8" To 1-3/16"(10-30mm) Dia Bearings On A Shaft & In A Casing
The Kukko Int Bearing Set is a versatile tool designed for efficient removal of grooved ball bearings from shafts and casings. Its self-tensioning mechanism and easy-to-handle design make it ideal for various applications, including automotive, aerospace, and industrial maintenance. The puller's precision pulling jaws provide optimal support and extension force, allowing for non-contact removal even when using a slide hammer. Suitable for bearings with diameters from 3/8in to 1-3/16in, this puller offers a long service life and secure retention of the part to be removed, making it an essential tool for professionals and DIY enthusiasts alike.
Top product features:
- Self-tensioning puller design for easy handling and use.
- Pulling jaws specifically developed for precise mounting in bearing tracks for optimal support and better extension force.
- Mechanical pressure spindle with rounded spindle head for use with a slide hammer for non-contact removal.
Top product applications:
- Automotive repair: removing stuck or damaged bearings from axles or driveshafts
- Industrial machinery maintenance: replacing bearings in conveyor belts, gearboxes, or other equipment
- Aerospace maintenance: removing bearings from aircraft or helicopter components, such as propellers or landing gear
This item is NOT returnable.
To remove grooved ball bearings without causing damage and without having to dismantle the shaft. Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" puller is self-tensioning and easy to handle. Simple self-explanatory use with a small number of individual components. Simple mounting of the pulling jaws with 90 rotation in the cross-beam. Secure form-fitting connection of the pulling jaws with the cross-beam. Only two pulling jaw types required. Machined lateral jaw surfaces ensure optimal jaw alignment with the cross-beam. Magnets under the cross-beam ensure simple mounting of the support rings on the ball bearing. Spindle head band prevents the wrench from slipping off. Non-contact removal possible - in combination with a slide hammer. With this puller grooved ball bearings that are simultaneously located on a shaft and in a casing can be quickly and easily removed. Puller is self-tensioning and easy to handle. Pulling jaws specifically developed for precise mounting in bearing tracks for optimal support and better extension force. Pulling jaws made of two parts. Dowel pin is hammered into the upper end of the jaw. The proven kukko claw in a newly developed modern jaw design. The two pulling jaw versions are color-coded for easier distinction. The pulling jaws are tempered for a long service life. The special cross-beam design ensures secure retention of the the part to be removed by the pulling jaws thanks to the spread adjuster. Mechanical pressure spindle. Rounded spindle head is used with the slide hammer as a spindle top. Milled thread treated with special coating. Instructions and conversion table in the cover. Secure storage in special foam. Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" diameter of support ring 3/4 - 1 1/2" outer diameter of ball bearing (metric) 26 - 52mm hexagon drive (male) 13 counter-pressure pad for extraction of ball bearing 10 - 42mm k-70 jaw length (metric) 70mmAdditional Information
- UPC: 4021176058851
- UNSPSC: 40161700
- Brand: KUKKO QUALITY TOOLS INC
- Package Quantity: 1
- Country of Origin: DE
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 17.52
- Package Width: 14.17
- Package Height: 6.02
- Package Weight: 4.21
Product info last updated on February 20, 2026 11:34pm UTC
Category: Pullers and Accessories
