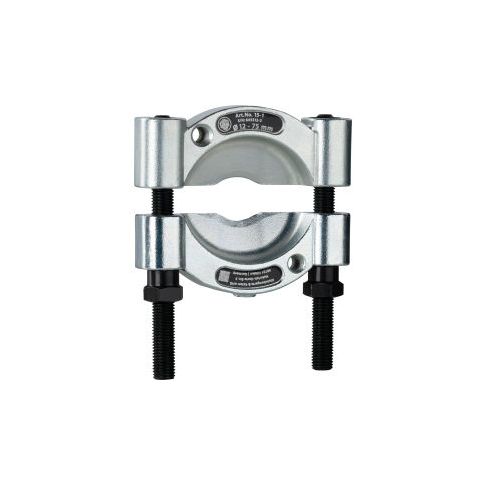

Kukko Bearing Separator 3/16"(12mm) To 3"(75mm) Open Used With 18-1 Pulling Device 15-1

This item is NOT returnable.

For removing ball bearings roller bearings inner races and other tight parts if there is not enough space to use pulling hooks. Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" ultimate stability when removing as the separator and pulling device are screwed firmly together. Almost all components available as replacement parts time-saving order process thanks to numbering system. The sharp blades enable flush parts to be removed where pulling jaws cannot be used. The wedge-shaped separator jaws are secured underneath the component to be removed. The large supporting surfaces protect the parts to be pulled. For use with series 18. If several parts have to be removed always follow a step-by-step process. Do not remove several parts at the same time. The separator blades support surfaces must always sit fully beneath the part to be removed. Do not use any electrical or pneumatic servo screwdrivers or hammer drills. Protective blanket required. Protective goggles required. Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" diameter of the shaft (metric) 12 - 75mm space next to it (metric) 75mm space next to it 3" distance of side screw 3" depth (metric) 200mm spread (metric) 12 - 75mm distance of side screw (metric) 75mm

Additional Information
