Needle Roll Thrust Brg, 1625, 1in Bore MPN:NTA-1625
Needle Roll Thrust Brg, 1625, 1in Bore

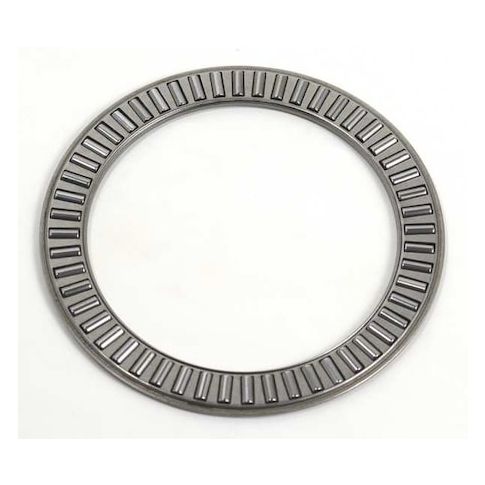

This Koyo Needle Roller Thrust Bearing is a high-performance component designed for applications requiring precise thrust load support. Ideal for use in machinery, equipment, and systems where minimal friction and maximum load capacity are essential. Its alloy steel construction and oil lubrication ensure smooth operation and extended lifespan. With a maximum speed of 11,000 RPM and temperatures ranging from -22°F to 248°F, this bearing is suitable for a wide range of applications, including industrial machinery, robotics, and aerospace equipment. Its compact design and high load capacity make it an excellent choice for demanding environments.
Top product features:
- Provides a thrust bearing type that is a thrust needle roller and cage assembly.
- Has a maximum operating speed of 11,000 RPM.
- Designed to operate within a temperature range of -22 to 248 Degrees F.
Top product applications:
- Aerospace applications due to high speed and temperature rating
- Automotive applications such as gearboxes and transmissions
- Industrial machinery applications including pumps and gearboxes
Needle Roller Thrust Bearing, Bearing Industry Number 1625, Bearing Design NTA, TC, Bore Diameter 1 in, Cage Material Alloy Steel, Compatible Washer TRA-1625, TRB-1625, TRD-1625, TRE-1625, Lubricant Material Oil, Maximum Speed 11,000 RPM, Maximum Temperature 248 Degrees F, Minimum Temperature -22 Degrees F, Outside Diameter 1 9/16 in, Overall Width 0.078 in, Roller Material Alloy Steel, System of Measurement Inch, Thrust Bearing Type Thrust Needle Roller and Cage Assembly
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.30
- Package Height: 0.90
- Package Weight: 0.03
Product info last updated on February 12, 2026 5:21pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
