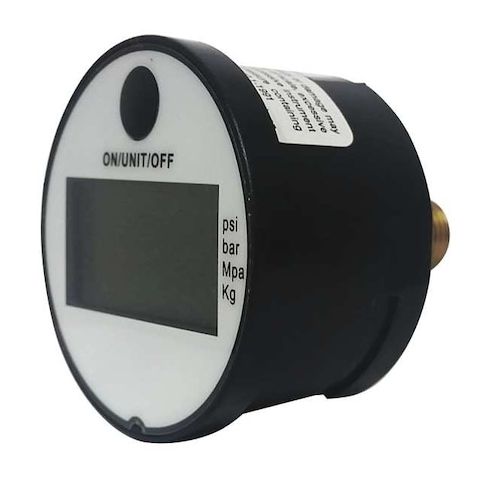

Digital Industrial Pressure Gauge, 0 to 145 psi, 1 3/4 in Dial, 1/4 in NPT, Center Back Location MPN:KCDG154145
Digital Industrial Pressure Gauge, 0 to 145 psi, 1 3/4 in Dial, 1/4 in NPT, Center Back Location
Monitor industrial processes with precision and ease using this digital pressure gauge. Accurate to +/-1.00 percent, it measures pressures up to 145 psi with a large 1 3/4 inch dial. The ABS thermoplastic case is durable and resistant to corrosion, while the brass/bronze sensor ensures reliable readings. Suitable for a range of applications, including manufacturing, oil and gas, and chemical processing, this gauge provides clear readings in bar, kg/sq cm, Mpa, or psi units. Its compact size and center back process connection make it easy to integrate into existing systems, providing valuable insights into pressure levels and trends.
Top product features:
- Digital display shows pressure readings in various units including bar, kg/sq cm, Mpa, and psi.
- Accuracy of +/-1.00 Percent ensures reliable and precise pressure measurements.
- Diaphragm sensor provides a sensitive and responsive measurement of pressure changes.
Top product applications:
- Industrial Process Control
- Hydraulic System Monitoring
- Pneumatic System Pressure Measurement
Digital Industrial Pressure Gauge, Accuracy +/-1.00 Percent, Gauge Case Material ABS Thermoplastic, Nominal Dial Size 1 3/4 in, Lens Material N/A - No lens, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Brass/Bronze, Socket Material Brass, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, kg/sq cm, Mpa, psi, Process Connection Gender Male, Battery Type 3V Lithium Battery, Process Connection Location Center Back, Process Connection Size 1/4 in
Additional Information
- Country of Origin: PE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.70
- Package Height: 2.00
- Package Weight: 0.10
Product info last updated on January 31, 2026 12:35am UTC
Category: Pressure and Vacuum Measuring
