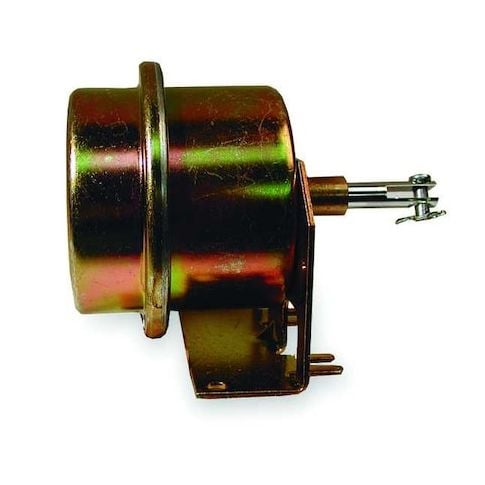

Linear Pneumatic Actuator, Pivot MPN:MCP-80313101
Linear Pneumatic Actuator, Pivot
The Linear Pneumatic Actuator, Pivot from KMC is a versatile solution for dampening airflow in various applications. Suitable for use in dampers, ductwork, and VAV terminals, this actuator provides precise control and reliable operation. With a maximum operating pressure of 20 psi, it can handle a wide range of airflow demands. Its compact design and push-on air connection make installation easy. The actuator's neoprene diaphragm ensures durability and resistance to air pressure fluctuations. Ideal for use in commercial and industrial settings, this actuator offers reliable performance and long-lasting operation.
Top product features:
- Pivot design allows for versatile installation orientation
- Linear actuator movement provides smooth and precise control
- Neoprene diaphragm material offers durability and resistance to air media
Top product applications:
- Dampers
- Ductwork
- VAV Terminals
Pneumatic Damper Actuator, Actuator Connection Clevis, Actuator Type Linear, Air Connection Gender Male, Air Connection Size 3/16 in, Air Connection Type Barbed Hose, Push-On, Application Dampers, Ductwork, VAV Terminals, Control Pressure - Maximum 20 psi, Diaphragm Material Neoprene, Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications, For Media Air, Force at 0 psi 34 lbf, Includes Positioner Positioner Not Included, Installation Orientation Versatile
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.30
- Package Height: 5.00
- Package Weight: 2.25
Product info last updated on March 15, 2026 2:48am UTC
Category: HVACR and Appliance Controls
