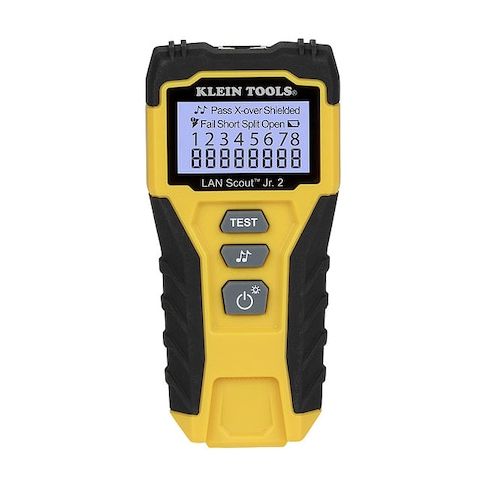

Cable Tester, LAN Scout Jr. 2, Backlit LCD, Multiple Tone Generator, Use With Dark Cable Systems MPN:vdv526-200
Free Shipping
In Stock
The LAN Scout Jr. 2 Cable Tester is a versatile tool for data cable professionals. Use it to test installed or loose data cables terminated with RJ45 connectors, tone cables with multiple tone frequencies, and identify faults such as open, short, miswire, or split-pair. The backlit LCD display makes it easy to read results in low-lit areas. Ideal for use in dark cable systems, this tester features an intuitive user interface and auto power-off feature. Perfect for network administrators, electricians, and data cable installers, the LAN Scout Jr. 2 is a valuable addition to any toolkit.
Top product features:
- Large backlit LCD display for easier reading in low lit areas.
- Tests for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield in data (RJ45) terminated cables and patch cords.
- Tone on single wire, wire pair or all 8 conductor wires with multiple style tone generator (solid / warble).
Top product applications:
- Cable testing for data (RJ45) terminated cables and patch cords
- Identifying faults such as Open, Short, Miswire or Split-Pair in data cables
- Locating cables with multiple tone frequencies for use with dark cable systems
The LAN Scout Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.
•Cable tester for data (RJ45) terminated cables and patch cords
•Large backlit LCD for low lit areas displays pin to pin wiremap results
•Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
•Intuitive user interface features three buttons with simple, easy-to-identify test responses
•Tone on single wire, wire pair or all 8 conductor wires
•Multiple style tone generator (solid / warble)- requires probe Cat. No. VDV500-123 (sold separately)
•Auto Power-Off feature - 10-minutes in test mode, 60-minutes in tone mode
•Soft, slip-resistant, rugged overmold for easy gripping and durability
•Replaceable 2 x AAA batteries (included)
•Replaceable self-storing remote (included)
•Replacement remote available - sold separately (Cat. No. VDV999-200)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 4.70
- Package Height: 1.80
- Package Weight: 0.46
