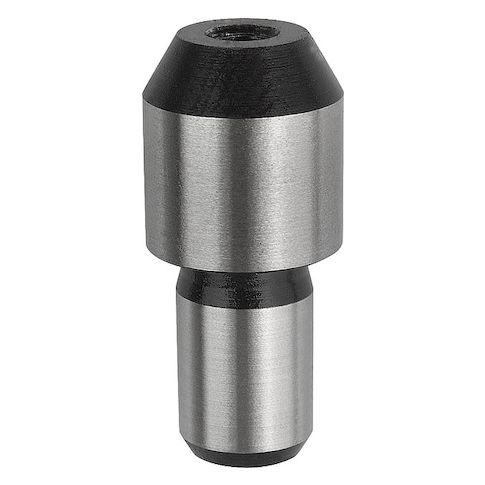

Stepped Round Locating Pin, Head 10 mmdia MPN:K0818.10
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G908073271
Stepped Round Locating Pin, Head 10 mmdia
The Stepped Round Locating Pin from KIPP is a precision tool engineered for demanding applications. Its 10mm round head and stepped design provide a secure fit in metric-sized holes, while the tool steel construction ensures durability and resistance to wear. The pin's compact size, with a shank length of 11mm and head height of 11mm, makes it ideal for use in tight spaces and small component assembly. Suitable for a range of industries, including aerospace, automotive, and manufacturing, this locating pin delivers precise positioning and repeatability, minimizing errors and improving overall production efficiency.
Top product features:
- Round head shape
- Shouldered design
- Tool steel material
Top product applications:
- Machine tooling for precision engineering
- Automotive assembly and manufacturing
- Medical device assembly and precision engineering
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Round, Head Diameter 10 mm, Head Height 11 mm, Shank Outside Diameter 7 mm, Head Chamfer Length 3 mm, Material Tool Steel, Shank Length 11 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.02
Product info last updated on January 18, 2026 2:26am UTC
Category: Machining
