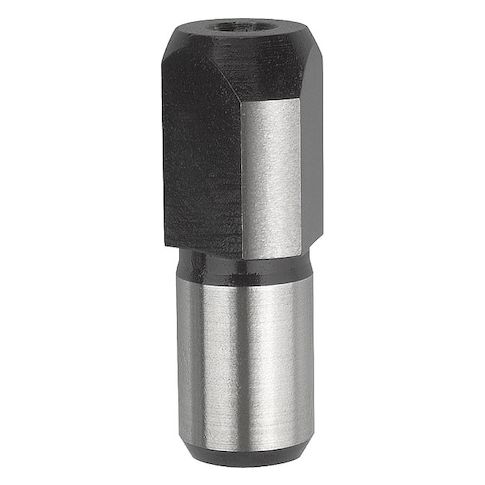

Stepped Diamong Locating Pin, 22 mm dia MPN:K0818.222
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G908073257
Stepped Diamong Locating Pin, 22 mm dia
The Stepped Diamond Locating Pin from KIPP is a precision tool ideal for applications requiring secure and accurate positioning. Its unique stepped design and diamond-shaped head provide a firm grip on mating parts, ensuring reliable alignment and reducing the risk of damage or wear. Suitable for use in various industries, including aerospace, automotive, and medical device manufacturing, this pin is made from high-quality tool steel and adheres to RoHS standards. Its compact size and lightweight design make it easy to handle and store, while its metric system compatibility ensures seamless integration with existing production processes.
Top product features:
- Stepped design allows for secure location in mating parts
- Shouldered head provides a stable reference point for assembly
- Diamond-shaped head offers a high degree of precision and accuracy
Top product applications:
- Locating and positioning of diamond tools in machining centers
- Positioning of diamond-coated cutting tools in CNC machines
- Locating of diamond-impregnated saw blades in woodworking machinery
Stepped Diamong Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Diamond, Head Diameter 22 mm, Head Height 17 mm, Shank Outside Diameter 16 mm, Head Chamfer Length 5 mm, Material Tool Steel, Shank Length 22 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.15
Product info last updated on January 18, 2026 2:26am UTC
Category: Machining
