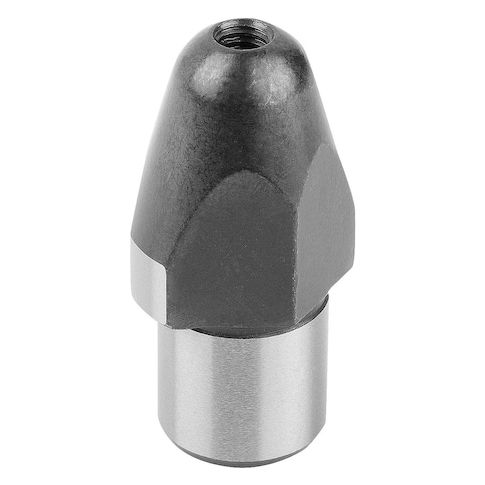

Locating Pin Short Version, Form:C, D1=20, D2=14, H=25, 5, Tool Steel MPN:K1094.420
Locating Pin Short Version, Form:C, D1=20, D2=14, H=25, 5, Tool Steel
Elevate your manufacturing and assembly processes with the Locating Pin Short Version, Form:C, a precision tool made from high-quality tool steel. With a compact design and dimensions of D1=20, D2=14, and H=25, this pin is perfect for applications requiring precise positioning and alignment. Its durability and resistance to wear ensure reliable performance in a variety of industries, including aerospace, automotive, and electronics. Ideal for use in machinery, equipment, and tooling, this locating pin provides a secure and stable foundation for your projects, reducing assembly time and improving overall efficiency.
Top product features:
- Made from tool steel for durability and resistance to wear and tear.
- Has a locating pin design, providing a precise and secure fit in applications.
- Has a compact design with dimensions D1=20, D2=14, and H=25, allowing for use in tight spaces.
Top product applications:
- Locating Pin in a precision machinery assembly
- Locating Pin in a medical device manufacturing process
- Locating Pin in a high-precision instrument calibration setup
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 4.00
- Package Height: 6.00
- Package Weight: 0.11
Product info last updated on March 12, 2026 2:53am UTC
Category: Machining
