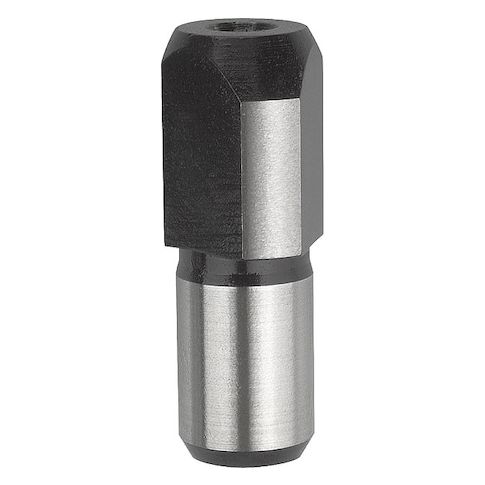

Stepped Diamong Locating Pin, 25 mm dia MPN:K0818.252
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G808073333
Stepped Diamong Locating Pin, 25 mm dia
The Stepped Diamond Locating Pin from KIPP is a precision tool designed for secure placement and retention of components in various applications. Its unique diamond-shaped head provides a strong grip, while the stepped design allows for precise positioning. Suitable for use in machining, assembly, and testing environments, this pin offers reliable performance and durability. Its tool steel construction and compact size make it ideal for use in tight spaces, reducing the risk of damage or misalignment. With its high precision and robust design, this locating pin is an essential tool for manufacturers and engineers seeking to optimize their processes and products.
Top product features:
- Stepped design provides precise location and alignment of components
- Diamond-shaped head offers increased bearing surface and reduced slippage
- Shouldered design prevents the pin from being pulled out of the material
Top product applications:
- Locating precision parts on a CNC machine
- Precision alignment of parts in an assembly line
- Securing components on a workpiece during machining operations
Stepped Diamong Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Diamond, Head Diameter 25 mm, Head Height 17 mm, Shank Outside Diameter 18 mm, Head Chamfer Length 5 mm, Material Tool Steel, Shank Length 25 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.21
Product info last updated on January 18, 2026 2:26am UTC
Category: Machining
