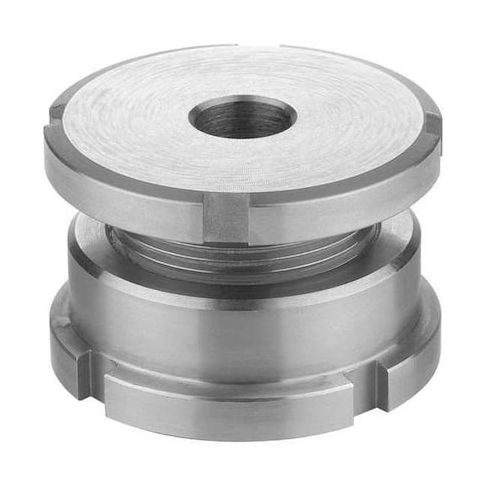

Leveling Set, Low Version, D=13, 5 Carbon Steel, D2= 45 MPN:K0694.0712
Leveling Set, Low Version, D=13, 5 Carbon Steel, D2= 45
The KIPP Leveling Set, Low Version, is a precision-engineered solution for applications requiring precise leveling and adjustment. With a carbon steel construction and zinc-plated finish, this set offers durability and resistance to corrosion. The adjustable bolt features a 13.50mm center hole, allowing for secure attachment to M12 screws and a maximum down force of 120 kN. Ideal for industries such as manufacturing, construction, and aerospace, this leveling set provides accurate leveling and stability, reducing the risk of errors and damage. Its compact design and lightweight construction make it easy to integrate into a wide range of applications.
Top product features:
- Adjustment Bolt material is Steel
- Bolt is Zinc Plated for corrosion resistance
- Center Hole Dia. 13.50mm allows for secure screw attachment
Top product applications:
- Machine Tool Installation
- Machining Center Setup
- Precision Engineering Equipment Mounting
Adjustment Bolt, Bolt Material Steel, Bolt Finish Zinc Plated, Center Hole Dia. 13.50mm, Use with Screw Size M12, Bolt Thread Size M30x1.5, Bolt Outside Dia. 45.00mm, Min. Bolt Height 22.00mm, Max. Bolt Height 29.00mm, Shoulder Height 7 mm, Spanner Notch Width 5 mm, Spanner Notch Depth 2 mm, Max. Down Force 120 kN
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 4.00
- Package Weight: 0.46
