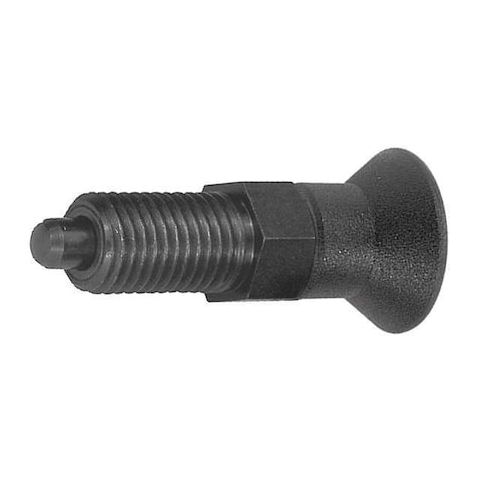

Indexing Plunger D1= M10X1, D=5, Style A, Non-Lockout wo Locknut, Steel Hardened, Knob Plastic MPN:K0338.1105
Indexing Plunger D1= M10X1, D=5, Style A, Non-Lockout wo Locknut, Steel Hardened, Knob Plastic
Elevate your manufacturing process with the KIPP Indexing Plunger, a precision-engineered tool designed for reliable and repeatable indexing. With a hardened steel plunger and durable thermoplastic knob, this plunger provides a consistent and precise push force, ideal for applications such as assembly, testing, and quality control. Its compact design and retractable feature make it easy to use in confined spaces, while its black oxide finish ensures durability and resistance to corrosion. Suitable for use in a variety of industries, including automotive, aerospace, and electronics, this indexing plunger is a reliable addition to any production line.
Top product features:
- Indexing plunger with a thread size of M10x1 for secure attachment to various components
- Retractable design with a plunger projection of 5 mm for easy operation
- Ball-shaped nose for precise engagement with mating parts
Top product applications:
- Indexing Plunger D1= M10X1, D=5, Style A, Non-Lockout wo Locknut, Steel Hardened, Knob Plastic from KIPP can be used as a positioning device in a machine tool, allowing for precise and repeatable movement of a component.
- Indexing Plunger D1= M10X1, D=5, Style A, Non-Lockout wo Locknut, Steel Hardened, Knob Plastic from KIPP can be used in a medical device to provide a precise and controlled movement of a component, such as a syringe or a biopsy needle.
- Indexing Plunger D1= M10X1, D=5, Style A, Non-Lockout wo Locknut, Steel Hardened, Knob Plastic from KIPP can be used in a robotic assembly system to provide precise and repeatable movement of a component, such as a screw or a bolt.
Indexing Plunger, Thread Size M10x1, Thread Length 15 mm, Nose Shape Ball, Plunger Material Steel, Plunger Dia. 5.00mm, Plunger Projection 5 mm, Mounting Type Not Applicable, With Locking Plunger No, Body Length 38.5 mm, Final Nose Force 12 N, Initial Nose Force 5 N, Overall Length 43.5 mm, Plunger Width 5 mm, Thread Pitch 1 mm, Handle Type Knob, Body Finish Black Oxide, Body Material Steel, Handle Color Black, Handle Material Thermoplastic, Plunger Finish Black Oxide, Retractable Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.25
Product info last updated on March 3, 2026 5:04pm UTC
Category: Machining
