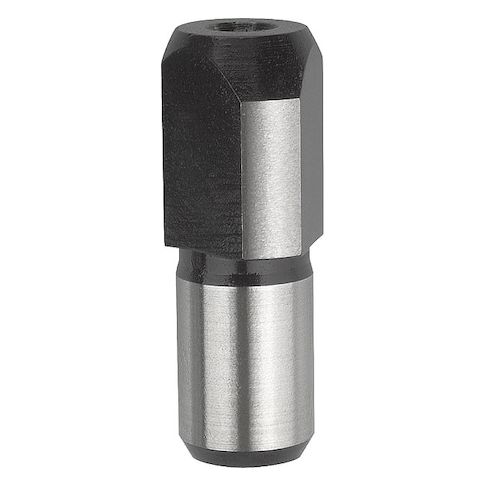

Stepped Diamong Locating Pin, 12 mm dia MPN:K0818.122
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G708073266
Stepped Diamong Locating Pin, 12 mm dia
The Stepped Diamond Locating Pin from KIPP is a precision tool designed for demanding applications. Its diamond-shaped head provides a secure grip, while the stepped design ensures accurate positioning. Made from tool steel, this pin offers durability and resistance to wear. Suitable for use in a variety of industries, including aerospace, automotive, and manufacturing, it can be used for tasks such as locating and positioning parts, guiding movement, and aligning components. Its compact size and lightweight design make it easy to handle and integrate into complex systems, making it an essential tool for professionals who demand precision and reliability.
Top product features:
- Stepped design allows for secure placement in a variety of applications.
- Diamond-shaped head provides a precise fit in locations with a diamond-shaped recess.
- Shouldered design helps to prevent the pin from slipping out of place.
Top product applications:
- Locating and aligning parts in precision machinery
- Positioning and securing components in medical devices
- Assembly and alignment of small mechanical parts in electronic devices
Stepped Diamong Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Diamond, Head Diameter 12 mm, Head Height 12 mm, Shank Outside Diameter 8 mm, Head Chamfer Length 3.5 mm, Material Tool Steel, Shank Length 13 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.02
Product info last updated on February 20, 2026 2:01pm UTC
Category: Machining
