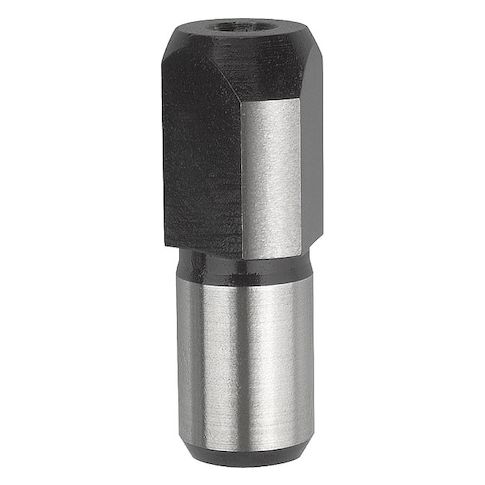

Stepped Diamong Locating Pin, 20 mm dia MPN:K0818.202
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G708073259
Stepped Diamong Locating Pin, 20 mm dia
This Stepped Diamond Locating Pin from KIPP is a precision tool designed for accurate positioning and locating of components in various manufacturing applications. Its diamond-shaped head provides a secure grip on workpieces, while its stepped design allows for easy insertion and removal. Made from tool steel, this pin offers high durability and resistance to wear and tear. Suitable for use in industries such as aerospace, automotive, and electronics, it ensures precise alignment and positioning of parts, reducing errors and improving overall production efficiency. Its compact size and lightweight design make it ideal for use in tight spaces and automated systems.
Top product features:
- Stepped design provides precise location and alignment of components
- Shouldered head allows for secure engagement with mating parts
- Diamond-shaped head provides increased surface contact and reduced risk of damage
Top product applications:
- CNC machining and precision engineering
- Automotive and aerospace manufacturing
- Medical device assembly and repair
Stepped Diamong Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Diamond, Head Diameter 20 mm, Head Height 15 mm, Shank Outside Diameter 14 mm, Head Chamfer Length 6 mm, Material Tool Steel, Shank Length 22 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.11
Product info last updated on January 18, 2026 2:26am UTC
Category: Machining
