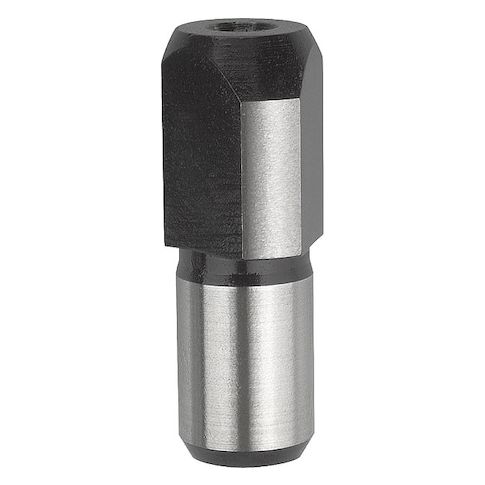

Stepped Diamong Locating Pin, 16 mm dia MPN:K0818.162
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G608073274
Stepped Diamong Locating Pin, 16 mm dia
The Stepped Diamond Locating Pin from KIPP is a precision tool designed for accurate positioning and locating applications. Its unique stepped design and diamond-shaped head provide a secure fit in metric-sized holes, ensuring reliable and repeatable results. With a tool steel construction, this pin offers high durability and resistance to wear. Ideal for use in manufacturing, prototyping, and quality control, this locating pin is perfect for applications where precision and accuracy are paramount, such as in the automotive, aerospace, and medical industries. Its compact size and lightweight design make it easy to handle and store.
Top product features:
- Stepped design provides precise location and alignment of components
- Diamond-shaped head offers a secure fit in component holes
- Shouldered design prevents the pin from slipping out of the hole
Top product applications:
- Machine Tooling
- CNC Machining
- Prototyping
Stepped Diamong Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Diamond, Head Diameter 16 mm, Head Height 14 mm, Shank Outside Diameter 12 mm, Head Chamfer Length 4.5 mm, Material Tool Steel, Shank Length 18 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.07
Product info last updated on April 9, 2026 11:36am UTC
Category: Machining
