Diamond Locating Pin, Head 20 mm dia MPN:K0817.202
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G508073282

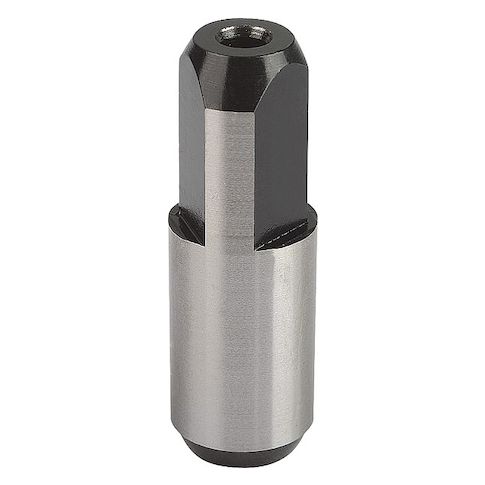

Diamond Locating Pin, Head 20 mm dia
The Diamond Locating Pin from KIPP is a precision tool designed for accurate positioning and alignment in various industries. Its diamond-shaped head provides a secure fit in mating parts, while its tool steel construction ensures durability and resistance to wear. With a 20mm diameter head and 17mm height, this pin is ideal for applications requiring precise location and registration. Its compact design and metric measurement system make it suitable for use in robotics, automation, and manufacturing environments, where accuracy and reliability are critical.
Top product features:
- Has a diamond-shaped head
- Made from tool steel
- Has a shouldered design
Top product applications:
- Drilling and tapping operations in machine shops
- Machining and grinding tools in manufacturing plants
- Automotive and aerospace component assembly and inspection
Diamond Locating Pin, System of Measurement Metric, Shouldered No, Head Shape Diamond, Head Diameter 20 mm, Head Height 17 mm, Shank Outside Diameter 20 mm, Material Tool Steel, Shank Length 47 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.22
Product info last updated on February 8, 2026 4:28am UTC
Category: Machining
