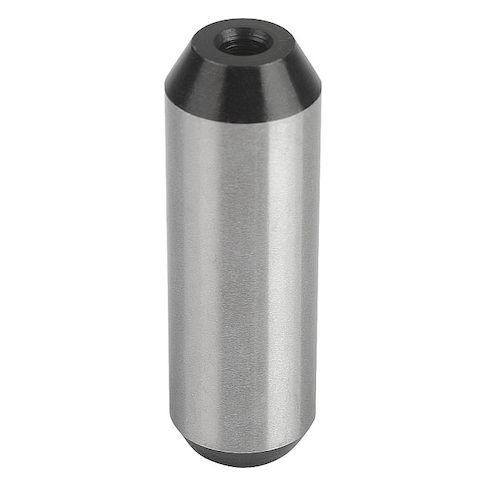

Round Locating Pin, Head 16 mm dia MPN:K0817.16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G508073268
Round Locating Pin, Head 16 mm dia
The Round Locating Pin from KIPP is a precision tool designed for secure fastening and positioning applications. Its 16mm diameter head and shank provide a sturdy and reliable fit in metric systems, making it ideal for use in manufacturing, engineering, and industrial settings. The shouldered design and chamfered edges ensure smooth insertion and reduced risk of damage or wear. With a lead time of just 3 days and a minimum order quantity of 1, this pin is perfect for prototyping, testing, or small-scale production runs. Its versatility and precision make it a valuable addition to any toolset.
Top product features:
- Round head design provides a precise fit in circular holes
- Shoulderless design allows for easy insertion and removal from holes
- 30-degree chamfer on shank facilitates smooth insertion and reduces risk of damage
Top product applications:
- Locating pins in automotive applications for precise engine mounting
- Precision engineering and manufacturing for aerospace components
- Assembly and testing of medical devices requiring precise alignment
Round Locating Pin, System of Measurement Metric, Shouldered No, Head Shape Round, Head Diameter 16 mm, Shank Outside Diameter 16 mm, Head Chamfer Length 4 mm, Shank Chamfer Angle 30 Degrees , Material Tool Steel, Shank Length 42 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.14
Product info last updated on February 13, 2026 10:01am UTC
Category: Machining
