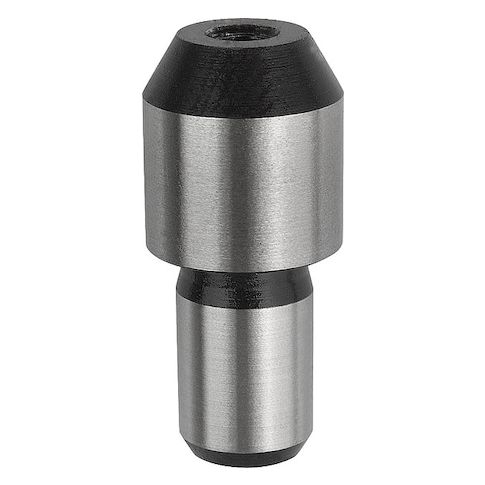

Stepped Round Locating Pin, 20 mm dia MPN:K0818.20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G408073290
Stepped Round Locating Pin, 20 mm dia
The Stepped Round Locating Pin from KIPP is a precision tool designed for precise positioning and locating applications. Its stepped design allows for secure engagement and disengagement, while its tool steel construction ensures durability and resistance to wear. With a round head and 20mm diameter, this pin is ideal for use in robotics, automation, and manufacturing industries where precise alignment and positioning are critical. Its compact size and lightweight design make it easy to handle and integrate into complex systems, improving productivity and reducing assembly time.
Top product features:
- Has a shouldered design
- Has a round head shape with a 20 mm diameter
- Has a stepped design with a 14 mm shank outside diameter and a 20 mm head diameter
Top product applications:
- Locating and aligning components in precision machinery assembly
- Machining and tooling applications requiring precise positioning
- Assembly and fastening of components in automotive and aerospace industries
Stepped Round Locating Pin, System of Measurement Metric, Shouldered Yes, Head Shape Round, Head Diameter 20 mm, Head Height 15 mm, Shank Outside Diameter 14 mm, Head Chamfer Length 5 mm, Material Tool Steel, Shank Length 22 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.13
Product info last updated on February 7, 2026 5:11pm UTC
Category: Machining
