Round Locating Pin, Head 20 mm dia MPN:K0817.20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G308073260

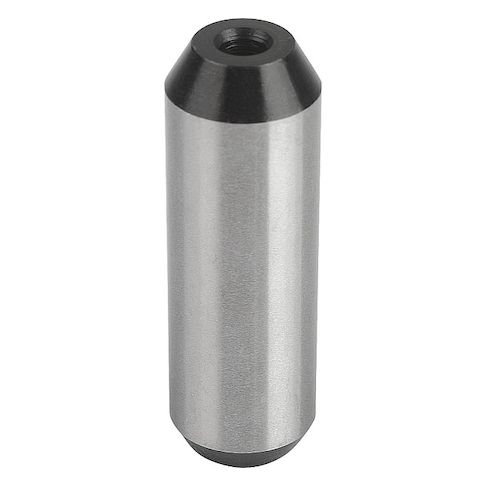

Round Locating Pin, Head 20 mm dia
The KIPP Round Locating Pin is a precision tool designed for precise positioning and locating in various industrial applications. With a 20mm diameter head and a 5mm chamfer, this pin provides a secure fit in tight spaces. Made from durable tool steel, it withstands heavy use and maintains its shape. Suitable for use in robotics, automation, and precision engineering, this pin ensures accurate alignment and minimizes errors. Its compact size and lightweight design make it easy to handle and integrate into complex systems, making it an essential component for manufacturers and engineers seeking high precision and reliability.
Top product features:
- Round head provides a secure fit in round holes
- Shoulderless design minimizes interference with mating parts
- 30-degree chamfer on shank facilitates easy insertion and removal
Top product applications:
- Round Locating Pin can be used as a precision locating pin in CNC machining centers.
- Round Locating Pin can be used as a locating pin in metal stamping dies.
- Round Locating Pin can be used as a locating pin in precision engineering and manufacturing applications.
Round Locating Pin, System of Measurement Metric, Shouldered No, Head Shape Round, Head Diameter 20 mm, Shank Outside Diameter 20 mm, Head Chamfer Length 5 mm, Shank Chamfer Angle 30 Degrees , Material Tool Steel, Shank Length 47 mm, Standards RoHS
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.25
Product info last updated on January 18, 2026 12:50am UTC
Category: Machining
