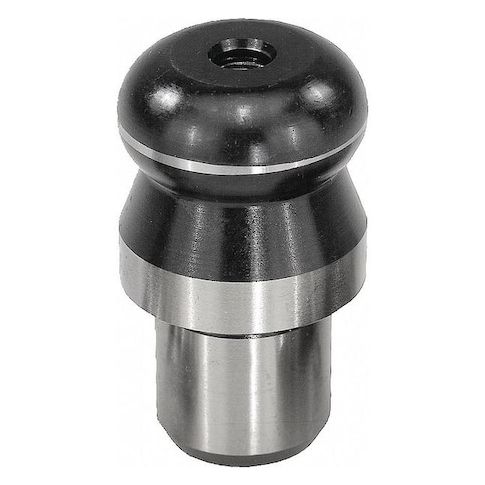

Locating Pin With Ball-End C=22, Form: B Tool Steel MPN:K0351.22
Locating Pin With Ball-End C=22, Form: B Tool Steel
This precision locating pin features a ball-end design for secure positioning in a variety of applications. Made from durable tool steel, it provides reliable performance in demanding environments. The metric system and 22mm head diameter make it suitable for use in machinery and equipment manufacturing. The pin's compact size and 30-degree chamfered shank enable easy insertion into tight spaces. Ideal for use in robotics, automation, and precision engineering, this locating pin ensures accurate alignment and stable operation. Its compact design and high-quality materials make it an essential component in numerous industrial applications.
Top product features:
- Shouldered design for precise locating
- Ball-end head for versatile positioning
- 30-degree chamfer for smooth insertion
Top product applications:
- Locating pin with ball-end used in precision machinery assembly
- Precision locating pin for medical device manufacturing
- Locating pin with ball-end used in robotic assembly and automation
Locating Pin w/Ball End, System of Measurement Metric, Shouldered No, Head Shape Ball End, Head Diameter 22 mm, Head Height 22 mm, Shank Outside Diameter 16 mm, Shank Chamfer Angle 30 Degrees , Material Tool Steel, Shank Length 16 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.18
Product info last updated on February 24, 2026 6:07pm UTC
