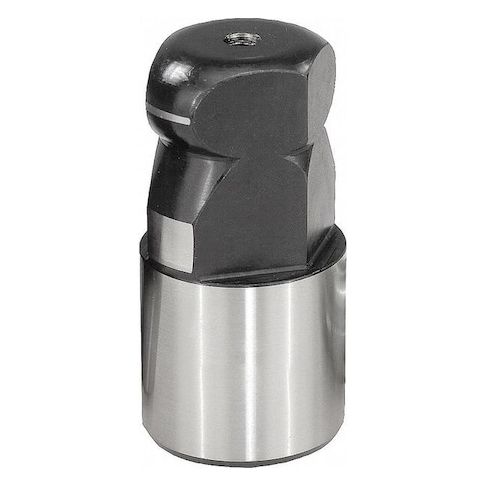

Locating Pin With Ball-End, C=10, Form: C Tool Steel 1.4305, Flattened MPN:K0350.102
Locating Pin With Ball-End, C=10, Form: C Tool Steel 1.4305, Flattened
This Flattened Ball-End Locating Pin is a precision-engineered tool designed for secure and accurate positioning in manufacturing and assembly processes. Made from high-quality tool steel 1.4305, it features a flattened ball-end design for smooth movement and reduced wear. With a 10mm head diameter and height, it provides a stable and reliable fit in a variety of applications. Suitable for use in industries such as aerospace, automotive, and medical device manufacturing, this locating pin ensures precise alignment and minimizes errors. Its compact size and durable construction make it an ideal component for automated systems and production lines.
Top product features:
- Has a flattened ball-end for precise fit and alignment
- Made from tool steel for durability and resistance to wear
- Has a 30-degree chamfer angle on the shank for easy insertion into tight spaces
Top product applications:
- Locating Pin With Ball-End, C=10, Form: C Tool Steel 1.4305, Flattened from KIPP can be used in machinery manufacturing for precise component alignment and positioning.
- It can be used in the automotive industry for locating and aligning engine components during assembly.
- It can be used in the aerospace industry for locating and aligning critical components during assembly and maintenance.
Flattened Ball-End Locating Pin, System of Measurement Metric, Shouldered No, Head Shape Flattened Ball End, Head Diameter 10 mm, Head Height 10 mm, Shank Outside Diameter 10 mm, Shank Chamfer Angle 30 Degrees , Material Tool Steel, Shank Length 13 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.02
Product info last updated on February 6, 2026 1:54pm UTC
