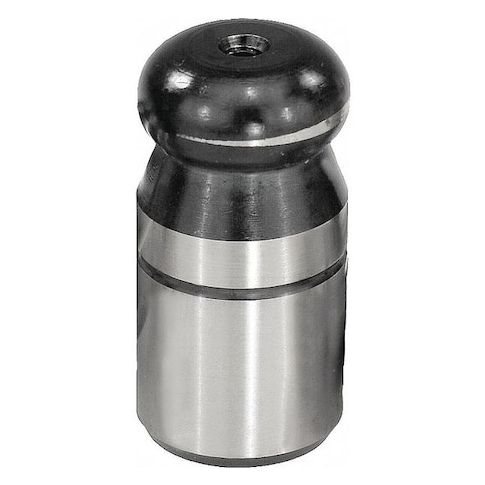

Locating Pin With Ball-End, C=10, Form: A Tool Steel 1.4305 MPN:K0350.10
Locating Pin With Ball-End, C=10, Form: A Tool Steel 1.4305
This precision locating pin features a ball-end design, providing a secure and precise fit in a variety of applications. Constructed from high-quality tool steel, it offers excellent durability and resistance to wear. The metric system design and 10mm head diameter make it suitable for use in a range of industries, including aerospace and automotive. Its compact size and 13mm shank length allow for ease of use in tight spaces. Ideal for applications requiring precise location and alignment, such as in the manufacture of gears, bearings, and other mechanical components.
Top product features:
- Has a ball-end head shape for precise positioning and alignment
- Has a 30-degree chamfer angle on the shank for easy insertion into tight spaces
- Is made from tool steel for durability and resistance to wear and tear
Top product applications:
- Locating pins with ball-ends are used in precision assembly and manufacturing applications where a secure and precise fit is required.
- Locating pins with ball-ends can be used as a stop or a locating feature in jigs and fixtures.
- Locating pins with ball-ends are used in the assembly of small mechanical parts, such as gears, bearings, and other precision components.
Locating Pin w/Ball End, System of Measurement Metric, Shouldered No, Head Shape Ball End, Head Diameter 10 mm, Head Height 10 mm, Shank Outside Diameter 10 mm, Shank Chamfer Angle 30 Degrees , Material Tool Steel, Shank Length 13 mm, Standards RoHS
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.03
